ECO-WORTHY Complete Off-Grid Solar Panel Kit 120V/240V
ECO-WORTHY Complete Off-Grid Solar Kit with High-Capacity Storage
Package Includes
7380W PV & 20.48kWh Battery
18xECO-WORTHY & 410W SOLAR PANEL-BLACK
2xECO-WORTHY 5000W ALL-IN-ONE OFF-GRID INVERTER
2xPV-INVERTER CPV-INVERTER CABLE
4xPV EXTENSION CABLE

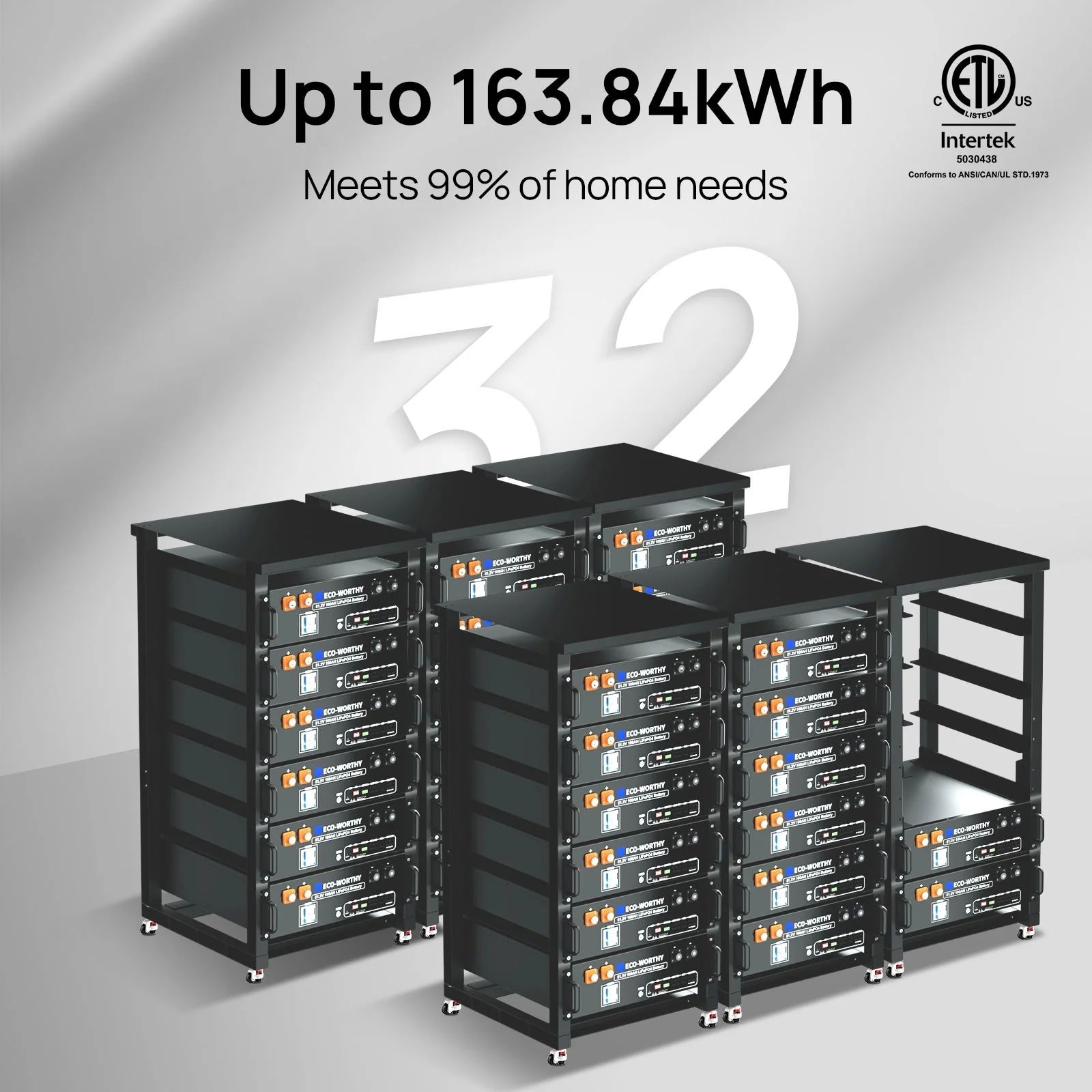

4xECO-WORTHY 51.2V 100AH LiFePO4 BATTERY

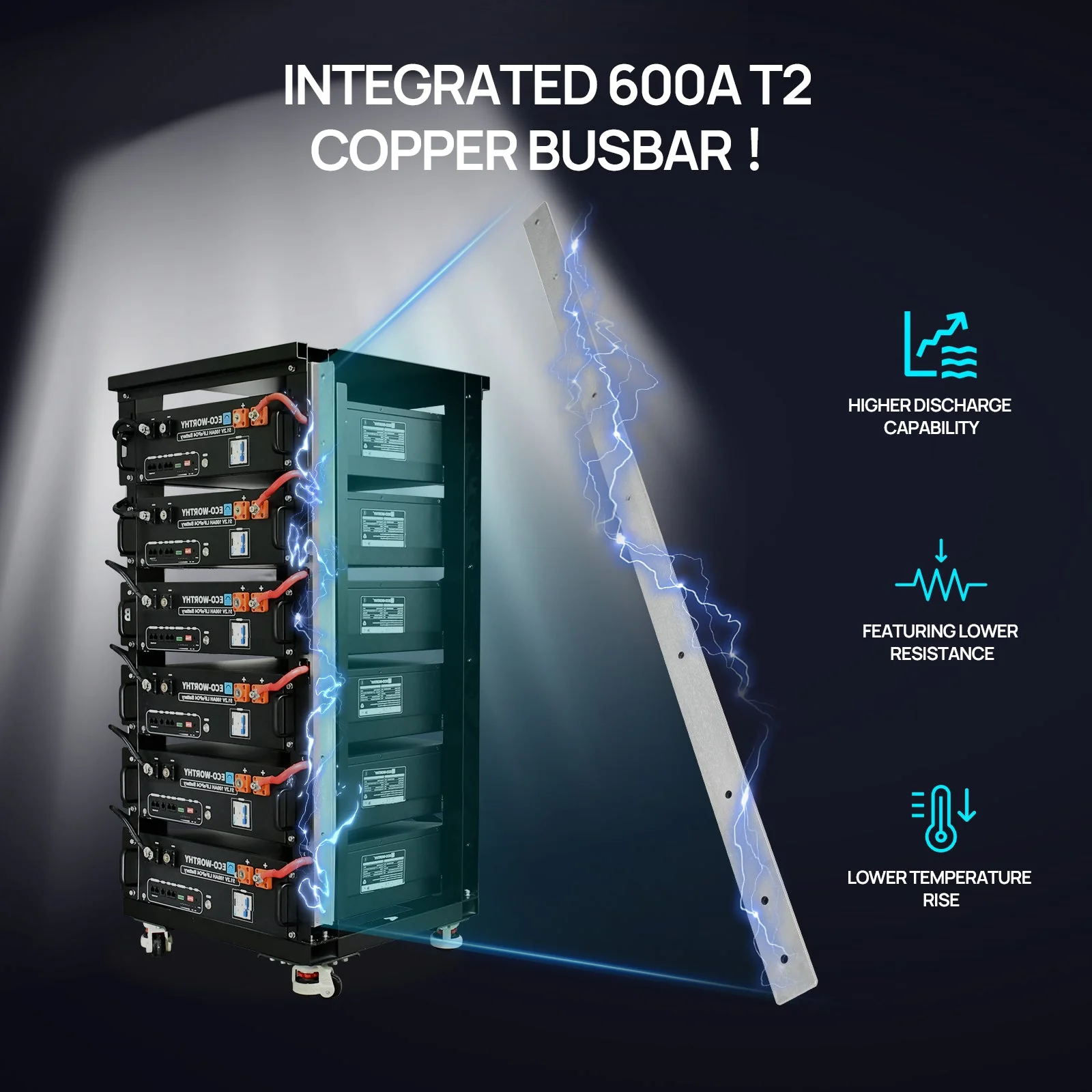

1xECO-WORTHY RACK6 V2 I 6-Layer Rack With 600A Busbar

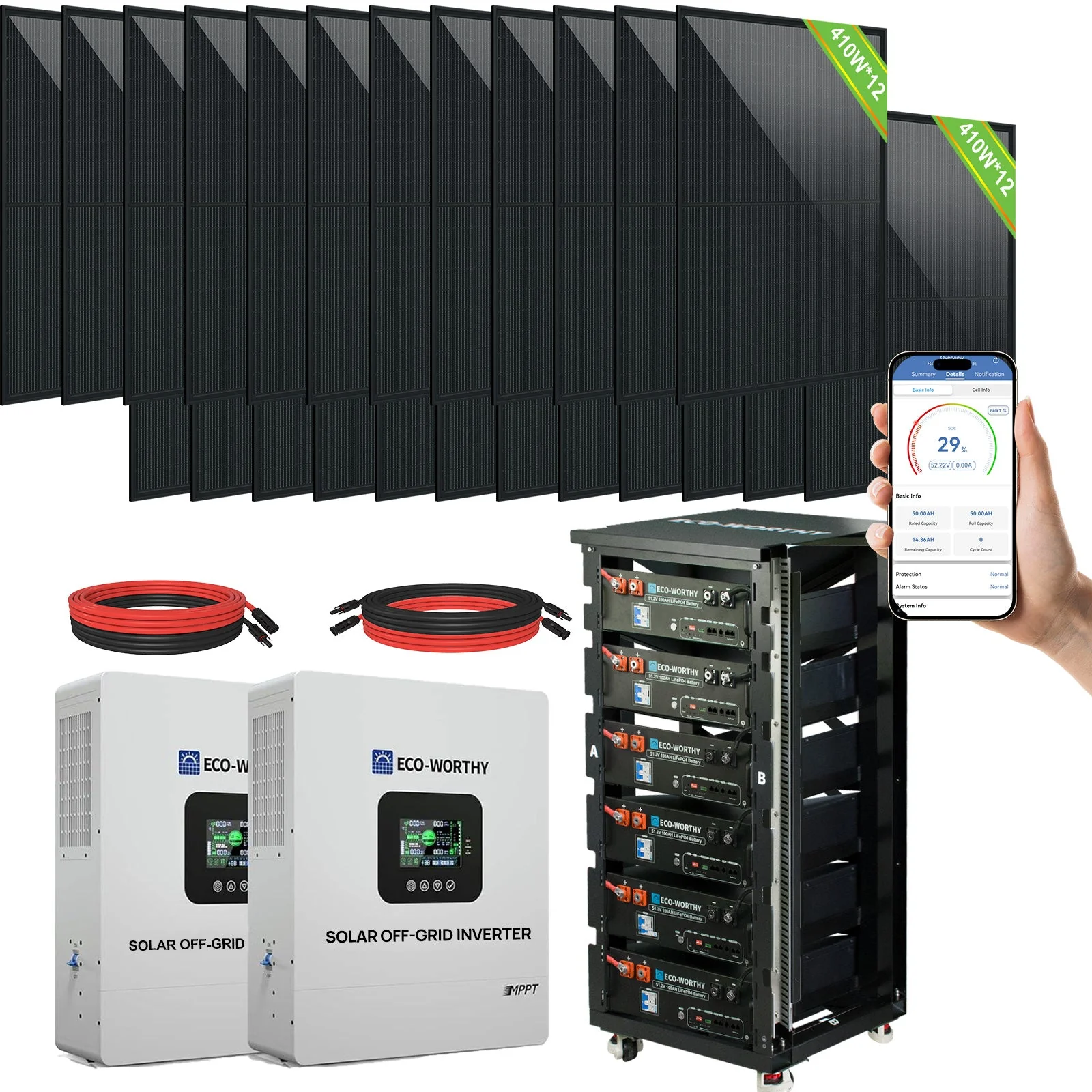

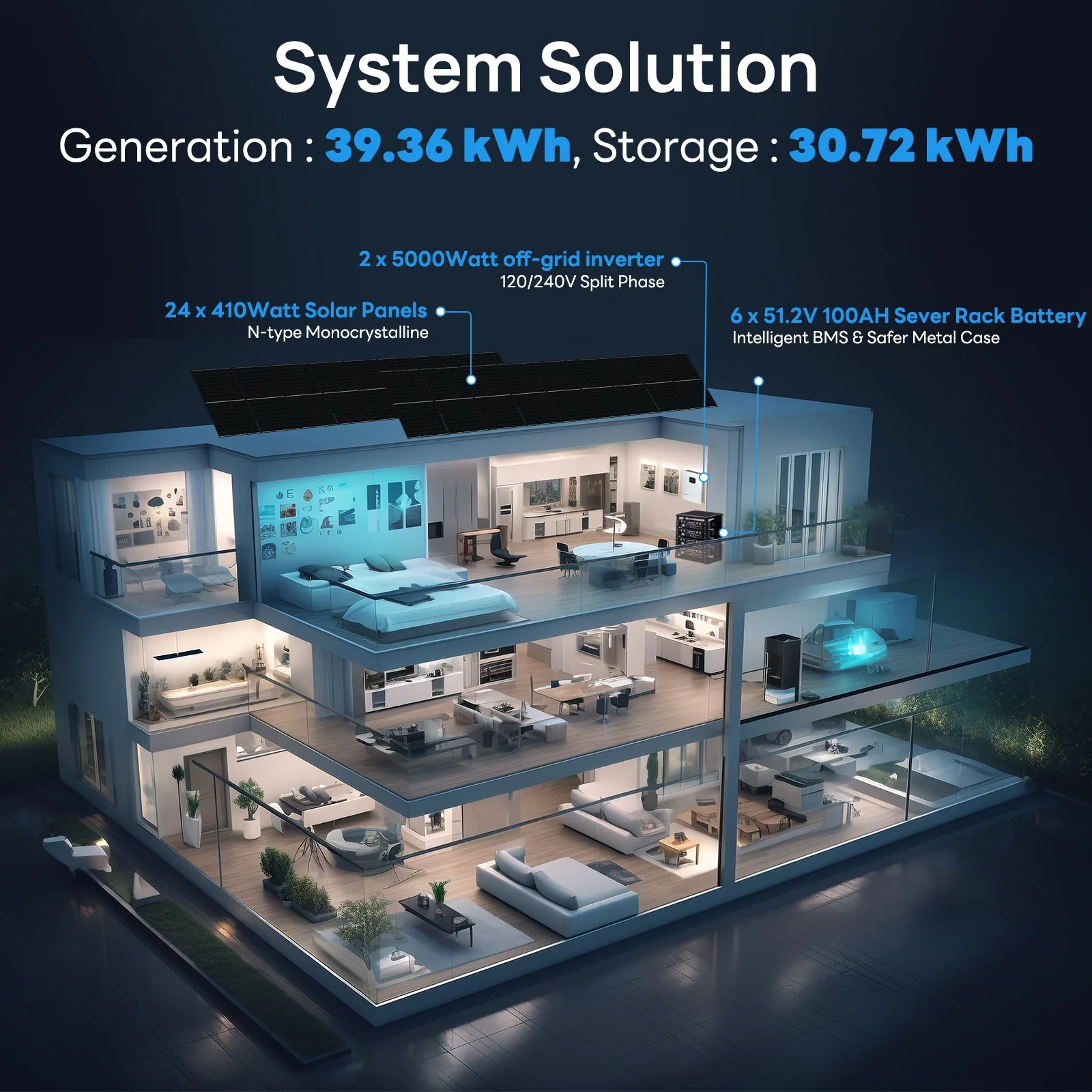

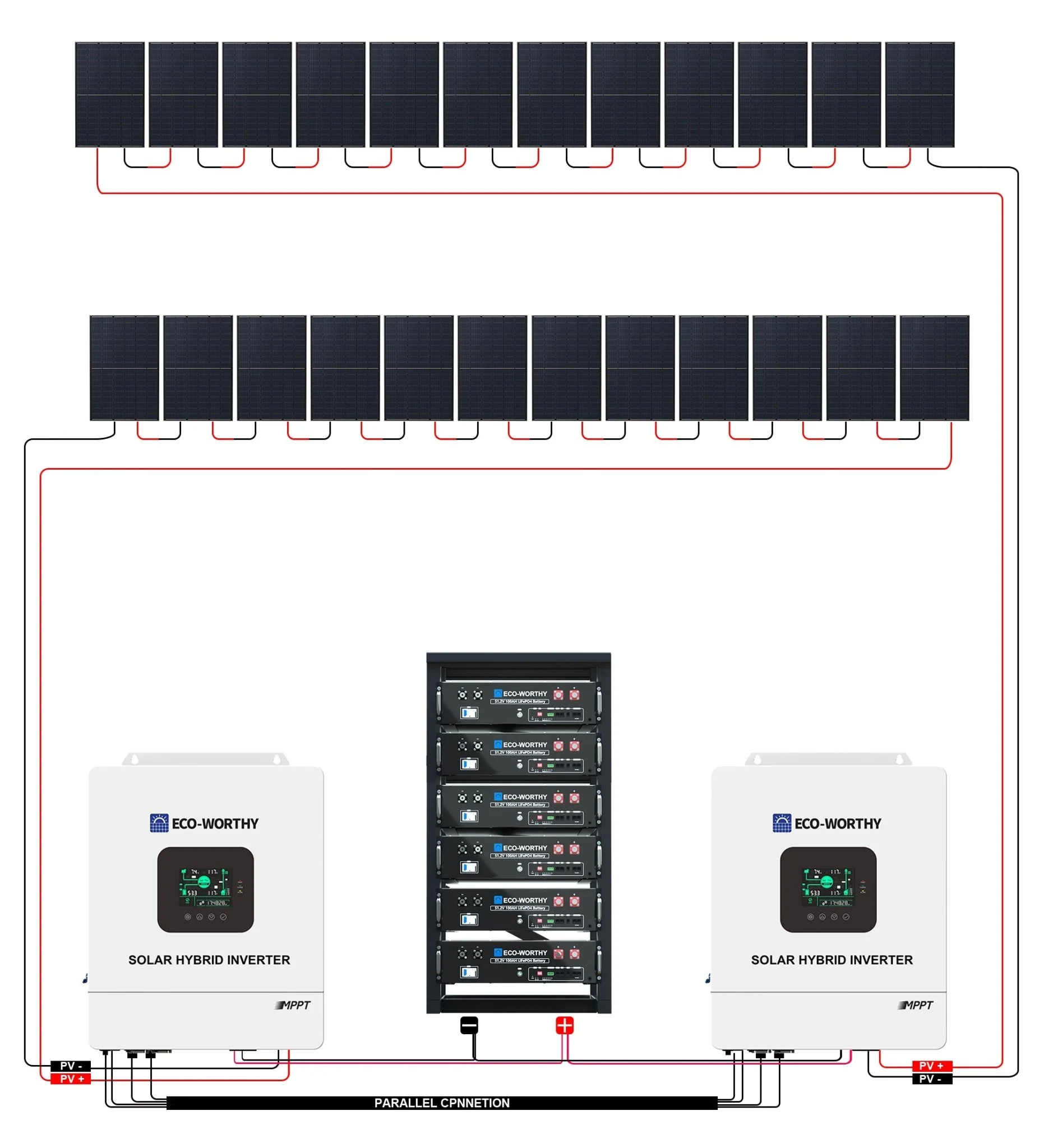

9840W PV &30.72kWh Battery
24xECO-WORTHY & 410W SOLAR PANEL-BLACK
2xECO-WORTHY 5000W ALL-IN-ONE OFF-GRID INVERTER
2xPV-INVERTER CABLE
4xPV EXTENSION CABLE
6xECO-WORTHY 51.2V 100AH LiFePO4 BATTERY
1xECO-WORTHY RACK6 V2 I 6-Layer Rack With 600A Busbar

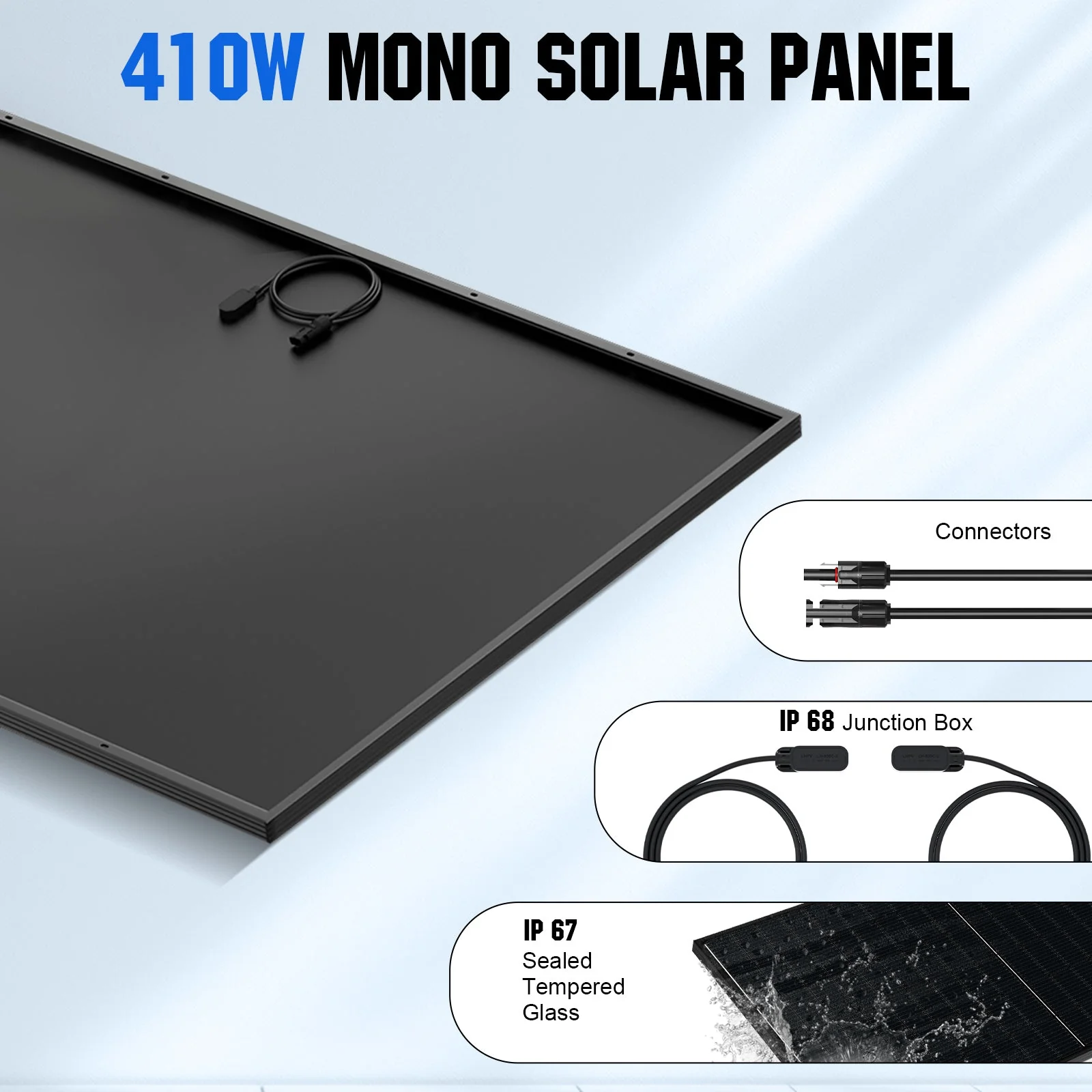

410W Monocrystalline Solar Panel
| Rated Power: 410W | Solar Cell: Mono PERC |
| Maximum/Peak Voltage(Vmp): 31.30V | Open Circuit Voltage(Voc): 37.50V |
| Short circuit current: 13.84A | Maximum current: 13.10A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: 0.05%/℃ |
| Temperate coefficient of Voc: -0.29%/℃ | Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.5 kg |
| Size: 1724x1134x30 mm(With Frame) | Warranty: 10 Years |
5000W 48V Off-Grid Inverter Charger
| AC Input Mode | |
| Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
| Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: >95% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A | |
| Invert Mode | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 5000W |
| Rated Output Voltage: 120VAC | Peak Power: 10000W |
| Bypass Breaker: 63A | Rated Battery Input Voltage: 48V |
| Min Starting Voltage: 44V | Power Saving Mode: Load ≤25W |
| AC Charging Mode | |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 60A |
| Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
| PV Charging Mode | |
| Max Input Power: 5000W | PV Charging Current Range：0-80A(can be set) |
| Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 60-145VDC |
| MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
| Max Output Power: 5000W | Charging Short Circuit Protection: Blown fuse |
48V 100Ah LiFePO4 Lithium Battery
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Battery Voltage: 51.2V | Maximum Charging Current: 100A |
| Maximum Discharging Current: 100A | Max Charge Voltage: 58.4V |
| Discharge Cut-Off Voltage: 10V | Operating Temperature: -4°F to 140°F |
| Cycle Life: ≥4000 at 50% DoD (depth of discharge) | Size: 21.71*19.02*5.24inch |
| Weight: 94.8 lbs |
Original: $8,999.99
-70%$8,999.99
$2,700.00More Images
ECO-WORTHY Complete Off-Grid Solar Panel Kit 120V/240V
ECO-WORTHY Complete Off-Grid Solar Kit with High-Capacity Storage
Package Includes
7380W PV & 20.48kWh Battery
18xECO-WORTHY & 410W SOLAR PANEL-BLACK
2xECO-WORTHY 5000W ALL-IN-ONE OFF-GRID INVERTER
2xPV-INVERTER CPV-INVERTER CABLE
4xPV EXTENSION CABLE
4xECO-WORTHY 51.2V 100AH LiFePO4 BATTERY
1xECO-WORTHY RACK6 V2 I 6-Layer Rack With 600A Busbar
9840W PV &30.72kWh Battery
24xECO-WORTHY & 410W SOLAR PANEL-BLACK
2xECO-WORTHY 5000W ALL-IN-ONE OFF-GRID INVERTER
2xPV-INVERTER CABLE
4xPV EXTENSION CABLE
6xECO-WORTHY 51.2V 100AH LiFePO4 BATTERY
1xECO-WORTHY RACK6 V2 I 6-Layer Rack With 600A Busbar
410W Monocrystalline Solar Panel
| Rated Power: 410W | Solar Cell: Mono PERC |
| Maximum/Peak Voltage(Vmp): 31.30V | Open Circuit Voltage(Voc): 37.50V |
| Short circuit current: 13.84A | Maximum current: 13.10A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: 0.05%/℃ |
| Temperate coefficient of Voc: -0.29%/℃ | Temperature range: －40℃～ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.5 kg |
| Size: 1724x1134x30 mm(With Frame) | Warranty: 10 Years |
5000W 48V Off-Grid Inverter Charger
| AC Input Mode | |
| Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
| Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: >95% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A | |
| Invert Mode | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 5000W |
| Rated Output Voltage: 120VAC | Peak Power: 10000W |
| Bypass Breaker: 63A | Rated Battery Input Voltage: 48V |
| Min Starting Voltage: 44V | Power Saving Mode: Load ≤25W |
| AC Charging Mode | |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 60A |
| Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
| PV Charging Mode | |
| Max Input Power: 5000W | PV Charging Current Range：0-80A(can be set) |
| Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 60-145VDC |
| MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
| Max Output Power: 5000W | Charging Short Circuit Protection: Blown fuse |
48V 100Ah LiFePO4 Lithium Battery
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Battery Voltage: 51.2V | Maximum Charging Current: 100A |
| Maximum Discharging Current: 100A | Max Charge Voltage: 58.4V |
| Discharge Cut-Off Voltage: 10V | Operating Temperature: -4°F to 140°F |
| Cycle Life: ≥4000 at 50% DoD (depth of discharge) | Size: 21.71*19.02*5.24inch |
| Weight: 94.8 lbs |
