1560W 48V (8x195W) Complete Off Grid Solar Kit

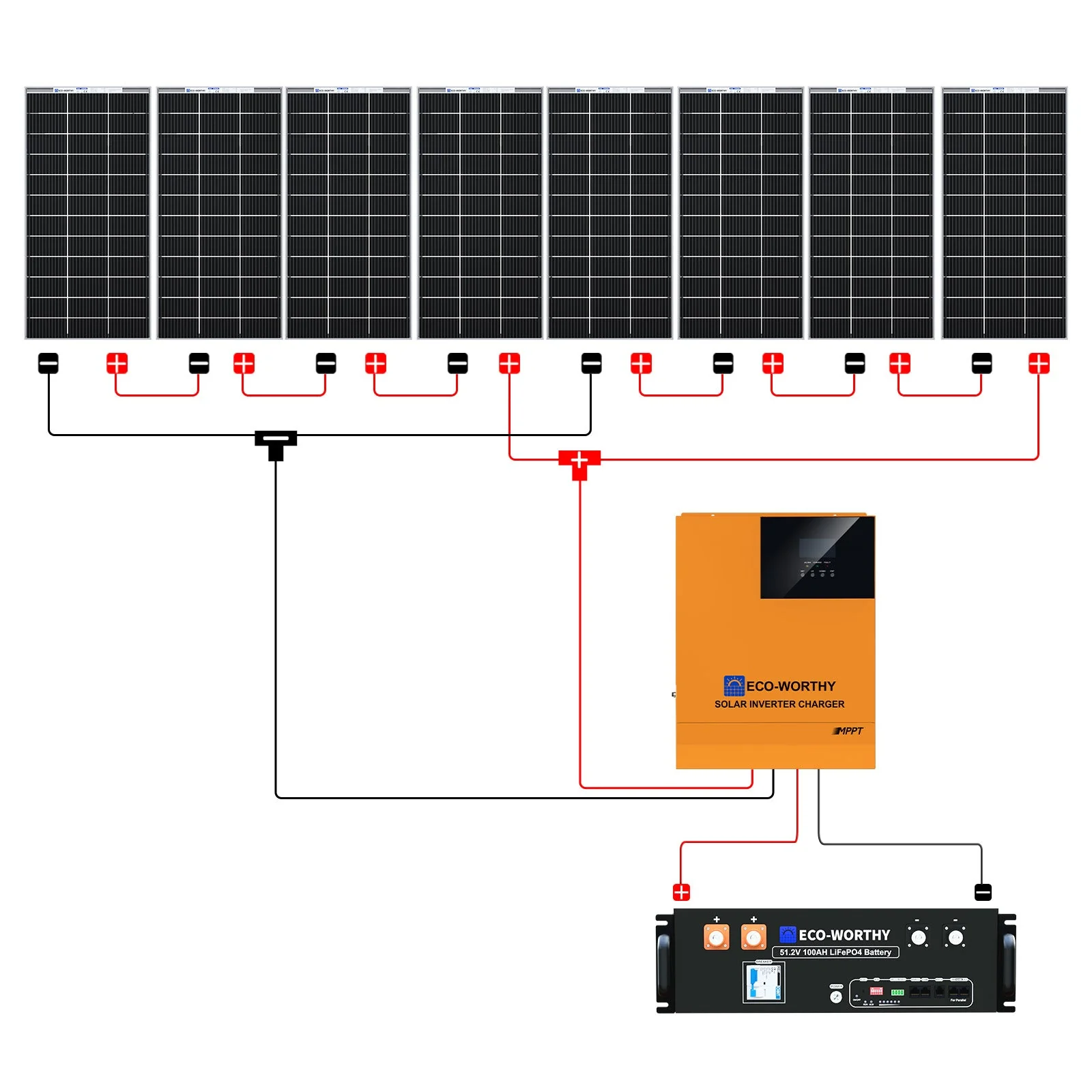

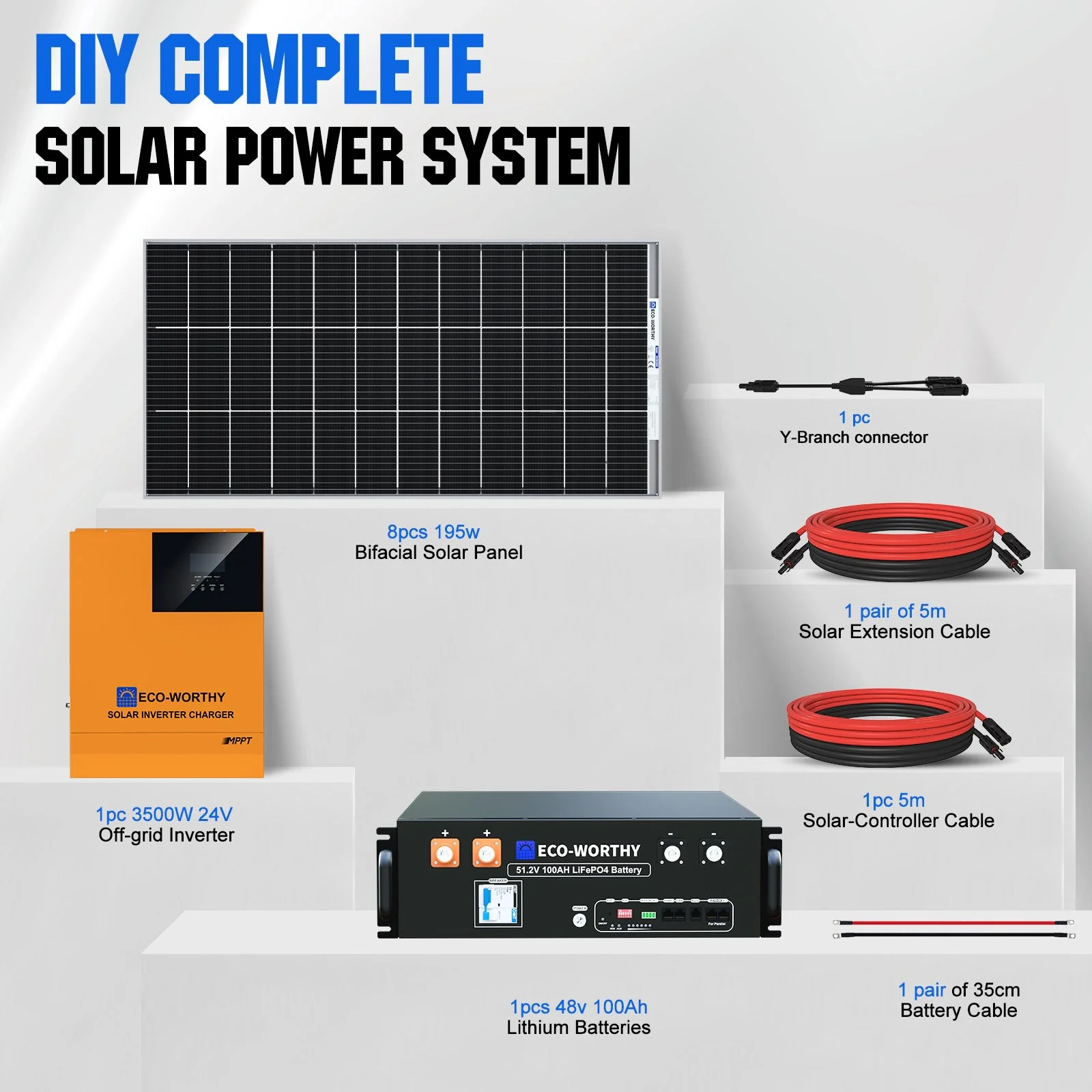

Package Includes
8x 195W Mono Solar Panel
1x 3500W 48V Inverter All-in-one Inverter
1x 5M 12AWG Extension Cable with MC4
1x 5M 12AWG MC4-MC4 Extension Cable
1x Y MC4 Connector
1x 48v 100Ah 48V(51.2V) 100Ah Server Rack Battery

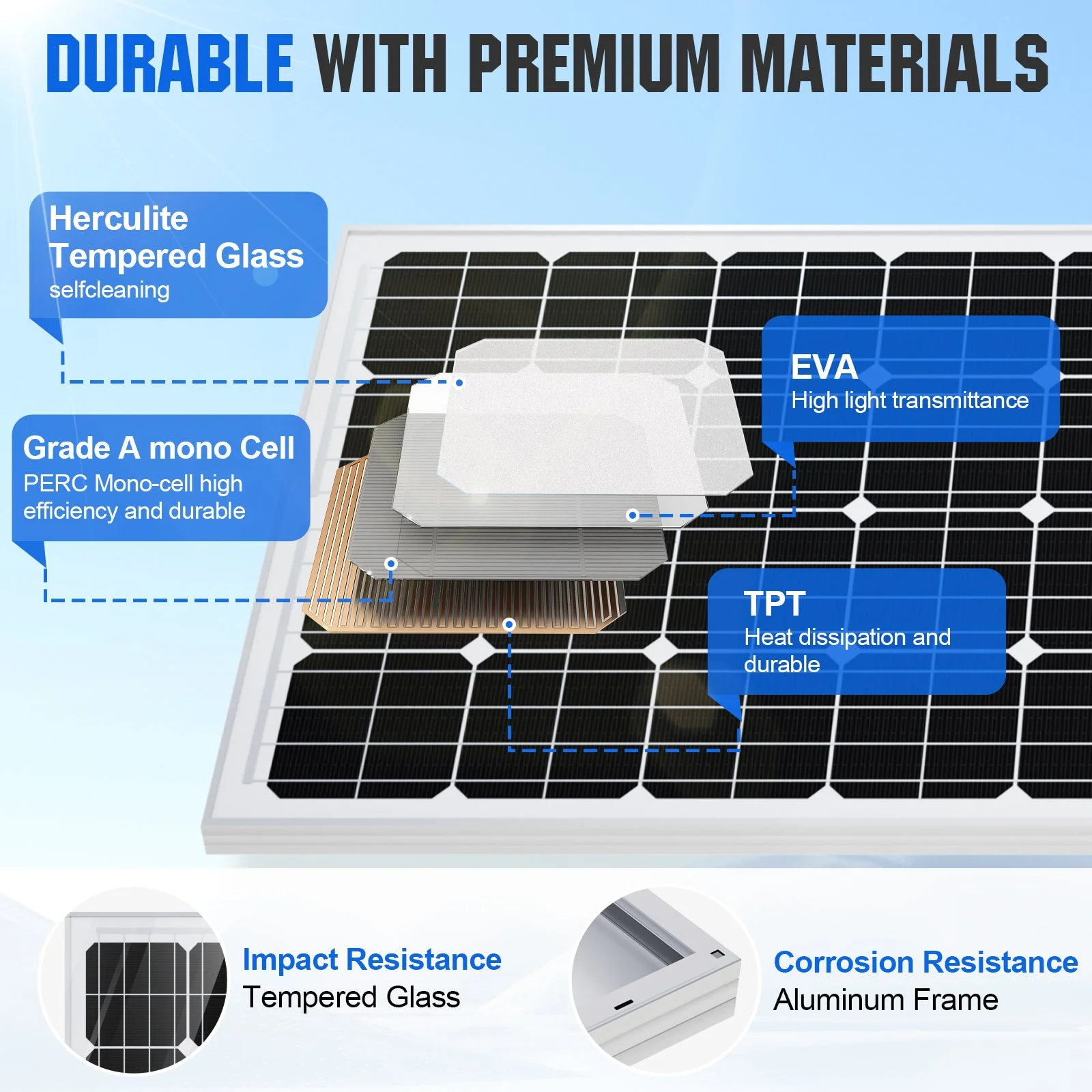

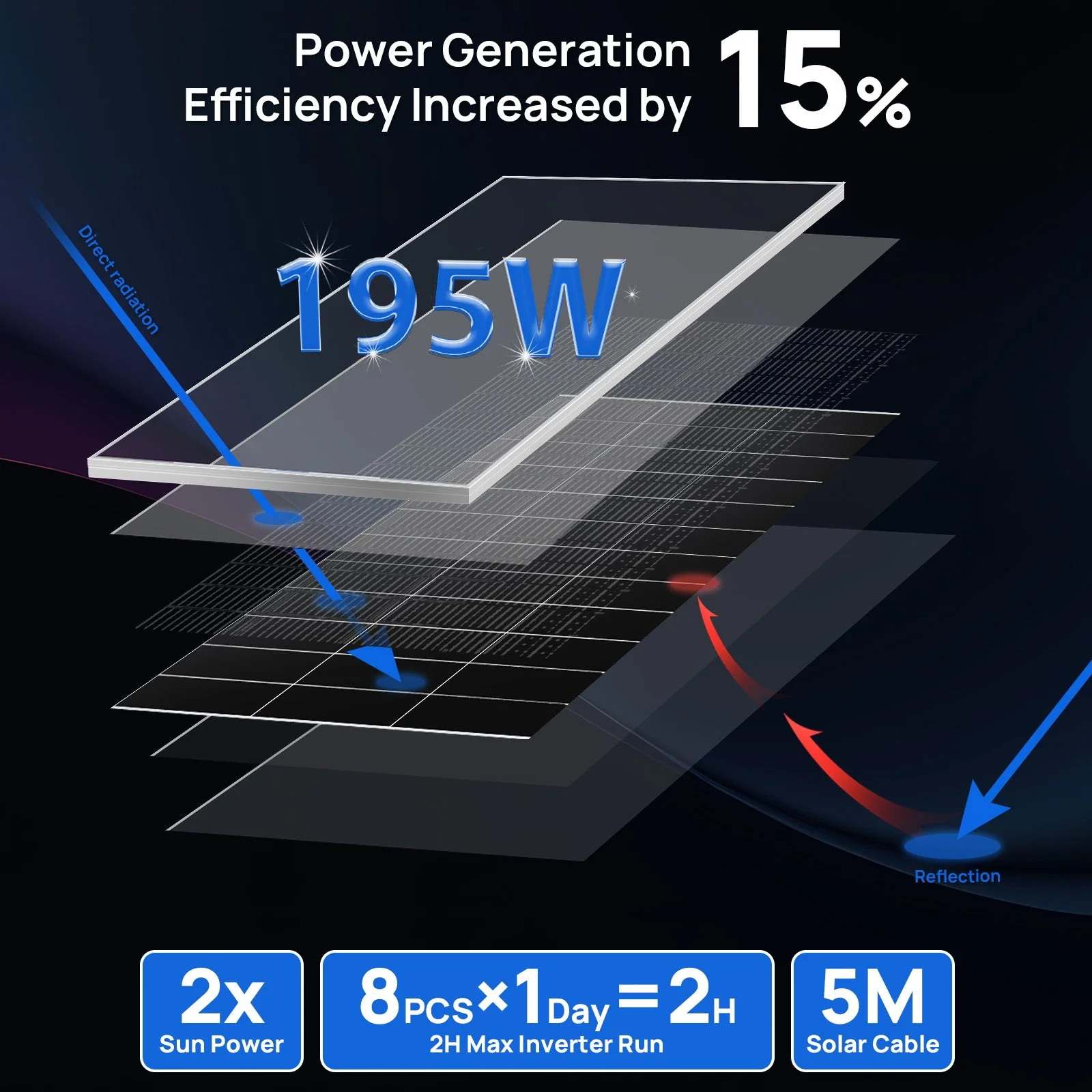

ECO-WORTHY 195W N-Type Bifacial Solar Panel for Off-Grid Power
| Rated Power: 195W | Solar Cell: Monocrystalline Silicon N-Type |
| Maximum/Peak Voltage(Vmp): 20.2V | Open Circuit Voltage(Voc): 21.2V±3% |
| Short circuit current: 11.60A±3% | Maximum current: 9.65A |
| Connector Type: MC4 |
Module Efficiency STC[%]:19.60% |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +80℃ |
| Frame: Aluminum alloy frame | Weight: 10.5kg/23.15lbs |
| Size: 58.86x26.18x1.37in (1495*665*35) |
|

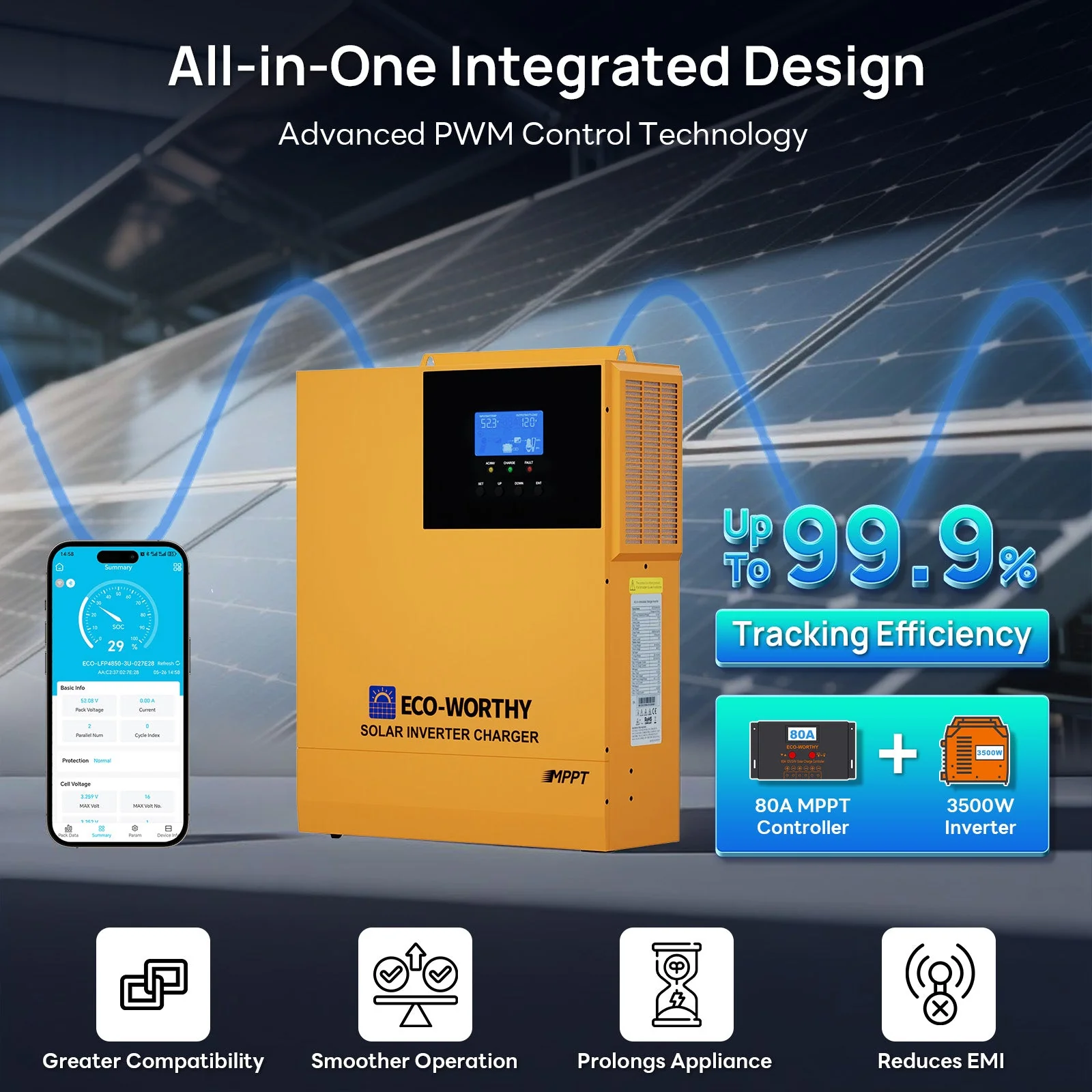

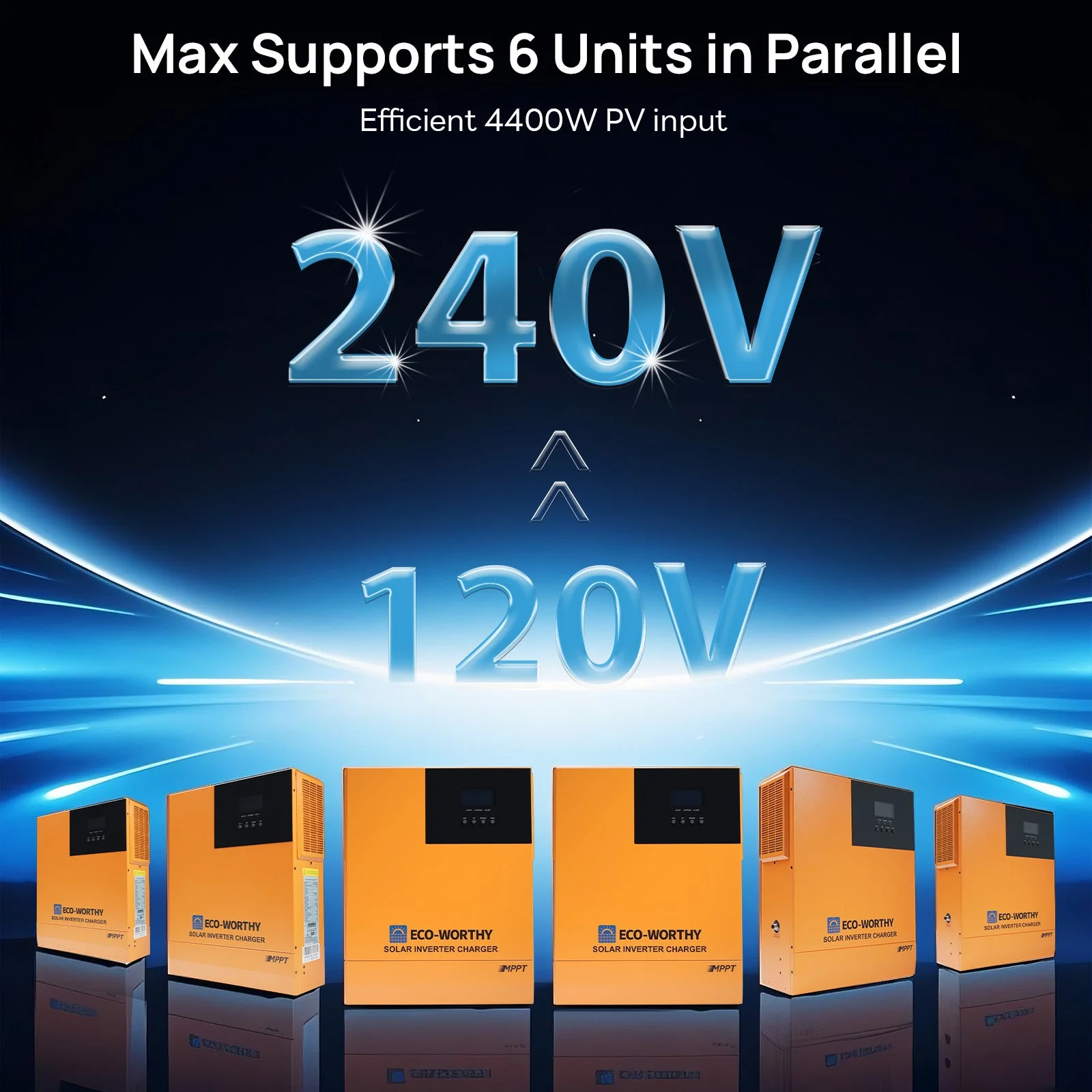

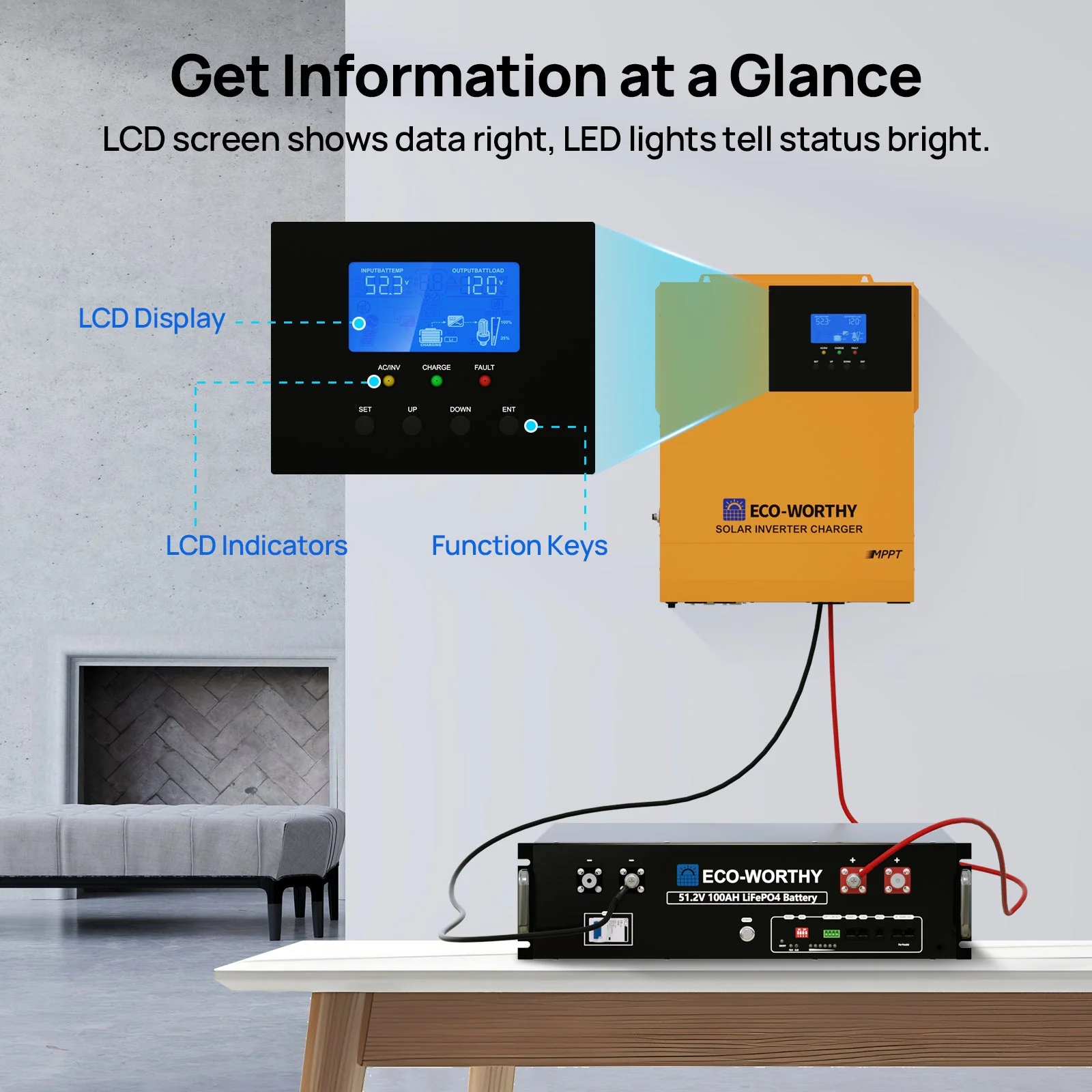

3500W 48V Inverter All-in-one Inverter
| AC Input Mode | |
| Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
| Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: 92% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A | |
| Invert Mode | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 3500W |
| Rated Output Voltage: 120VAC | Peak Power: 6000W |
| Bypass Breaker: 40A | Rated Battery Input Voltage: 48V |
| Min Starting Voltage: 44V | Power Saving Mode: Load ≤50W |
| AC Charging Mode | |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 40A |
| Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
| PV Charging Mode | |
| Max Input Power: 5000W | PV Charging Current Range：0-80A(can be set) |
| Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-450VDC |
| MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
| Max Output Power: 4400W | Charging Short Circuit Protection: Blown fuse |

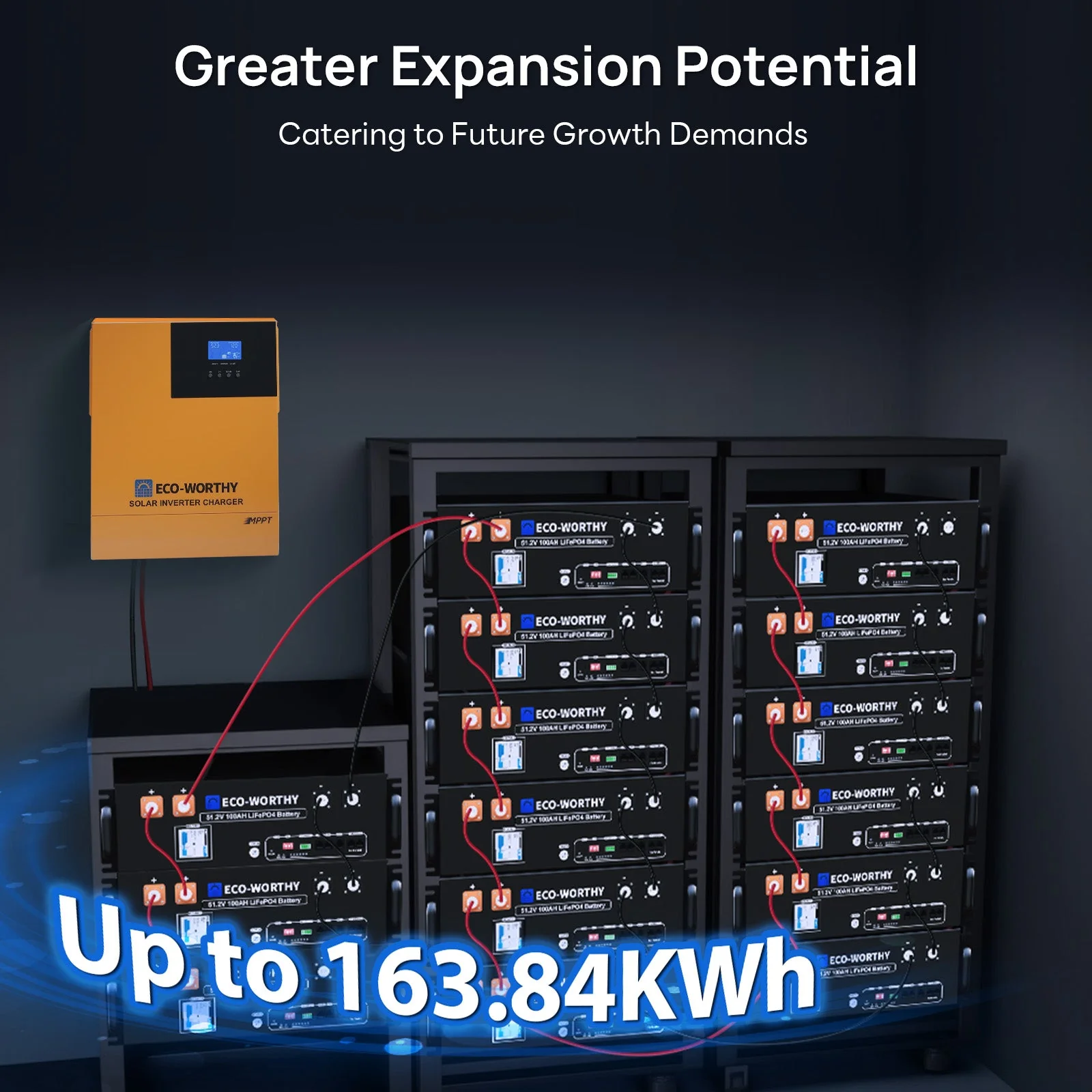

48V 100AH SERVE RACK LITHIUM BATTERY
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
| Screw size: M8 | Battery Size: 22.55*17.13*5.63inch |
| Battery Weight: 97 lbs |
$750.00
Original: $2,499.99
-70%1560W 48V (8x195W) Complete Off Grid Solar Kit—
$2,499.99
$750.00More Images
1560W 48V (8x195W) Complete Off Grid Solar Kit
Package Includes
8x 195W Mono Solar Panel
1x 3500W 48V Inverter All-in-one Inverter
1x 5M 12AWG Extension Cable with MC4
1x 5M 12AWG MC4-MC4 Extension Cable
1x Y MC4 Connector
1x 48v 100Ah 48V(51.2V) 100Ah Server Rack Battery
ECO-WORTHY 195W N-Type Bifacial Solar Panel for Off-Grid Power
| Rated Power: 195W | Solar Cell: Monocrystalline Silicon N-Type |
| Maximum/Peak Voltage(Vmp): 20.2V | Open Circuit Voltage(Voc): 21.2V±3% |
| Short circuit current: 11.60A±3% | Maximum current: 9.65A |
| Connector Type: MC4 |
Module Efficiency STC[%]:19.60% |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ | Temperature range: －40℃～ +80℃ |
| Frame: Aluminum alloy frame | Weight: 10.5kg/23.15lbs |
| Size: 58.86x26.18x1.37in (1495*665*35) |
|
3500W 48V Inverter All-in-one Inverter
| AC Input Mode | |
| Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
| Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: 92% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A | |
| Invert Mode | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 3500W |
| Rated Output Voltage: 120VAC | Peak Power: 6000W |
| Bypass Breaker: 40A | Rated Battery Input Voltage: 48V |
| Min Starting Voltage: 44V | Power Saving Mode: Load ≤50W |
| AC Charging Mode | |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 40A |
| Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
| PV Charging Mode | |
| Max Input Power: 5000W | PV Charging Current Range：0-80A(can be set) |
| Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 120-450VDC |
| MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
| Max Output Power: 4400W | Charging Short Circuit Protection: Blown fuse |
48V 100AH SERVE RACK LITHIUM BATTERY
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
| Screw size: M8 | Battery Size: 22.55*17.13*5.63inch |
| Battery Weight: 97 lbs |
