EC100 48V 100A Battery Charger for High-Power Energy Systems

48V 100A Smart Battery Charger(AC-DC)

Battery Voltage 48V

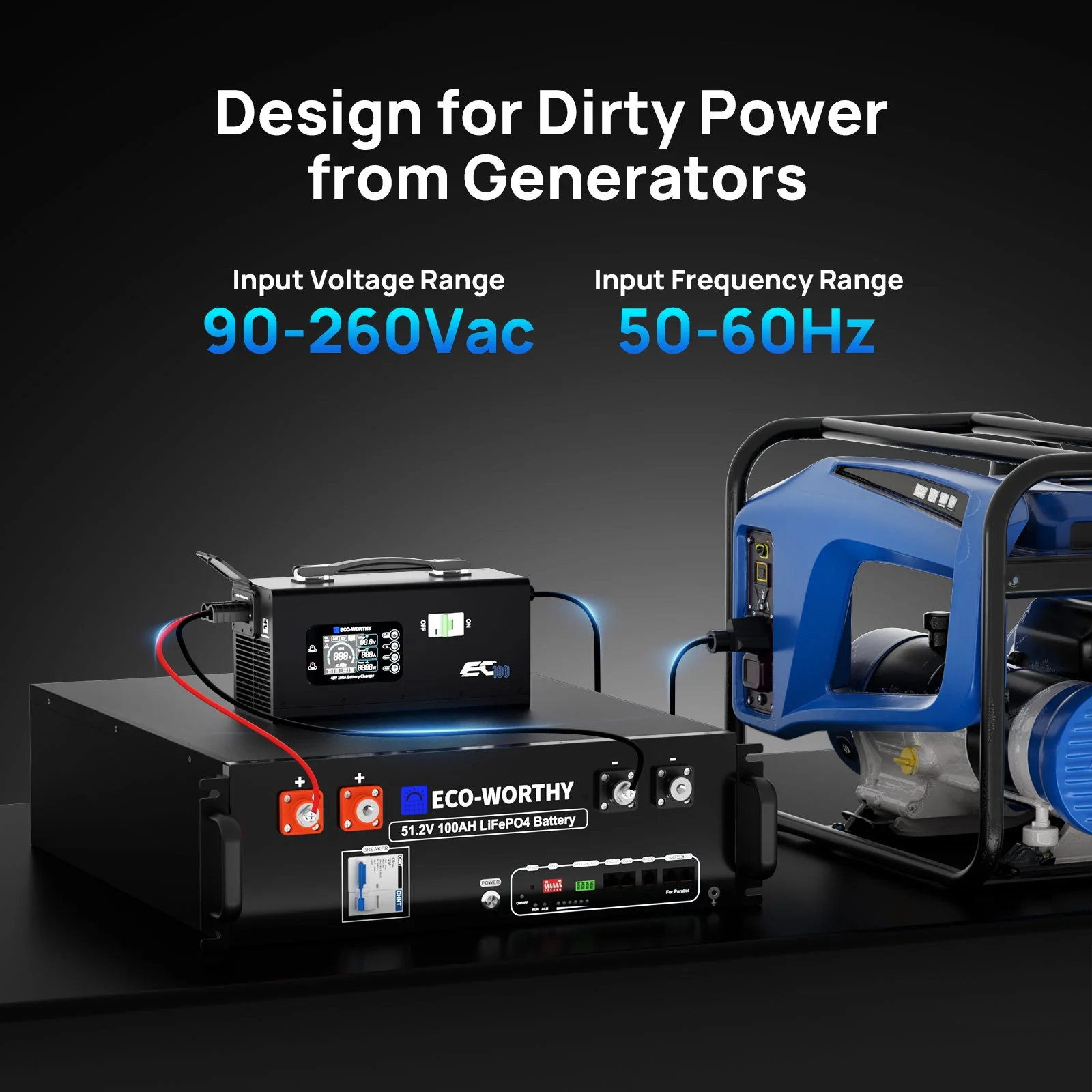

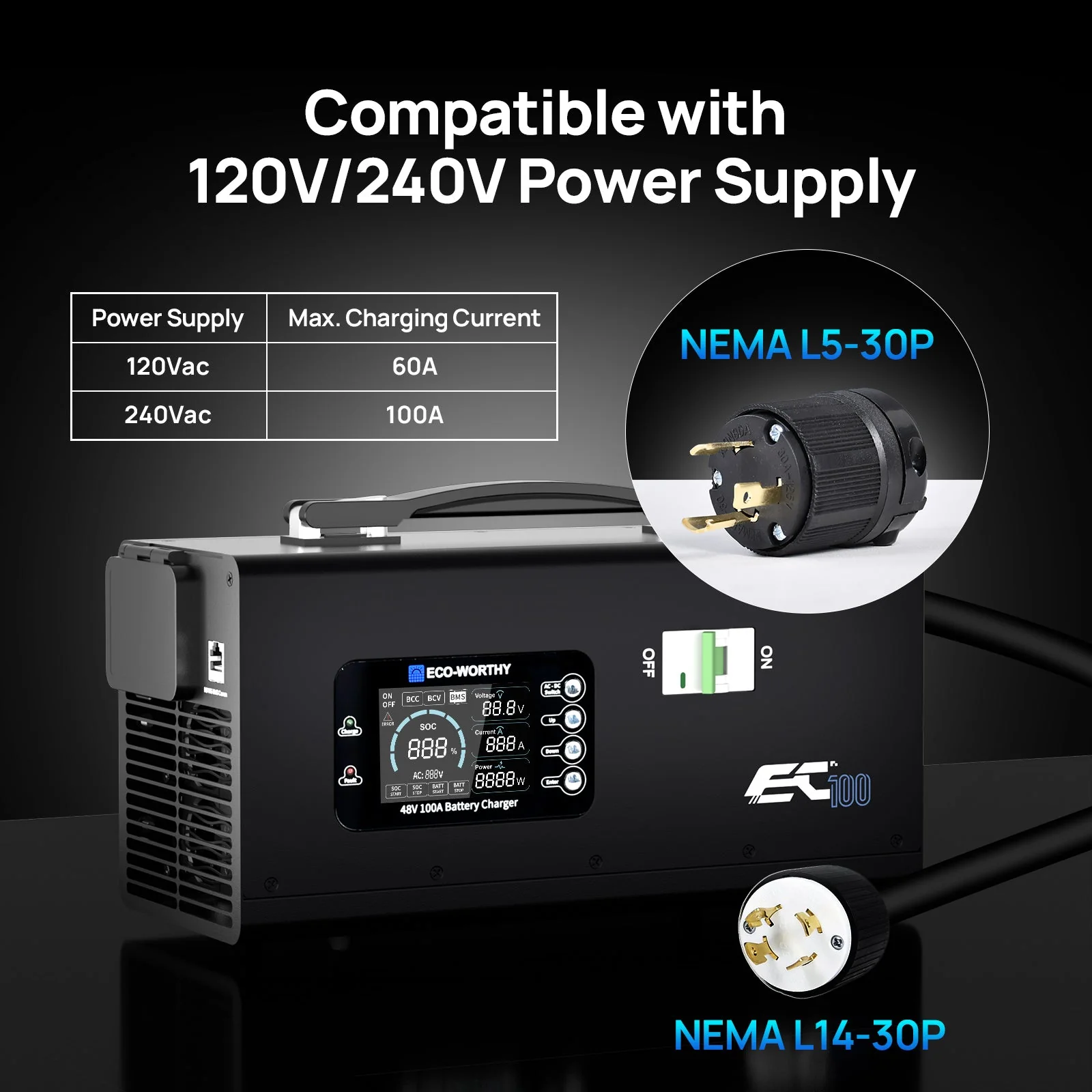

Rated AC Input Voltage
90-260Vac
Max AC Input Current
28A@240Vac/14A@120Vac
Recommended Generator
8KW@240Vac/4KW@120Vac
Efficiency
92% @240Vac ；88% @120Vac
Rated AC Input Frequency
50-60Hz
Battery Type LiFePO4、Lead-acid、AGM、LiNiCoMn
DC Charge Voltage (Adjustable)
42-57.8V（default 57.6Vdc）
DC Charge Current(Adjustable)
2-100A@240Vac；2-60A@120Vac

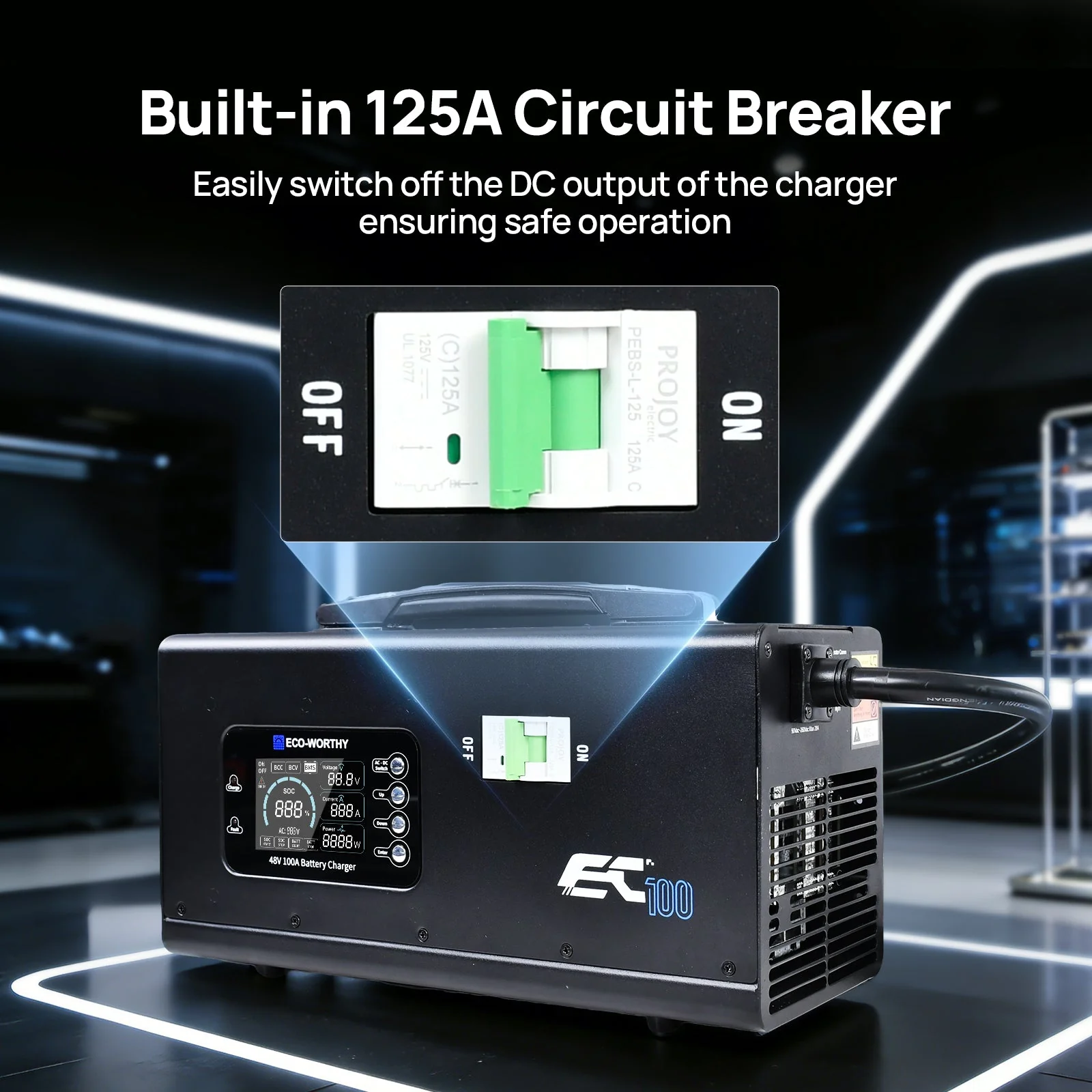

DC Output Circuit Breaker
125A

Max. Output

5780W@240Vac/2890W@120Vac
IP Rating
IP20（Indoor）
Weight
14.33Ibs/6.5kg
Dimensions (L × W × H)
12.8*5.3*6.3in/325*135*160mm
Warranty
3 Years

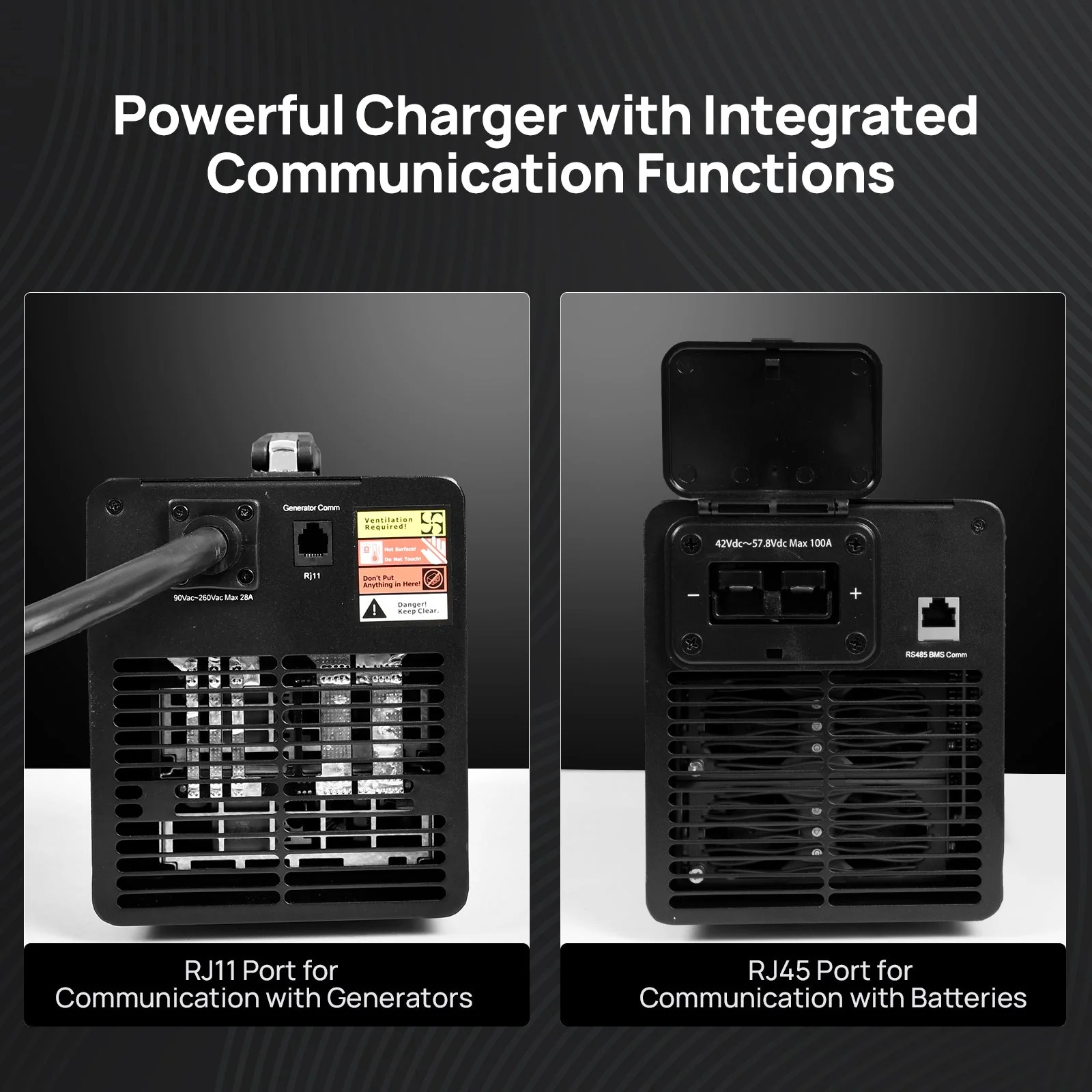

BMS Communication Protocol
RS485 (RJ45 Jack)
Dry Contact Port
NO, NC, and C (RJ11 Jack
