ECO-WORTHY 20.48kWh/30.72kWh Home Backup Power with 48V LiFePO4 and 10kW Inverter

ECO-WORTHY 20.48kWh–30.72kWh Home Backup Power System

Package Includes:

10KW AIO Inverter | 20.48kWh Lithium Battery

4 x 48v 100ah Serve Rack Lithium Battery
1 x 10000W Off-grid battery Rack
1 Pairs Battery-to-Inverter Connection Cable
4 Pairs Battery Parallel Cables

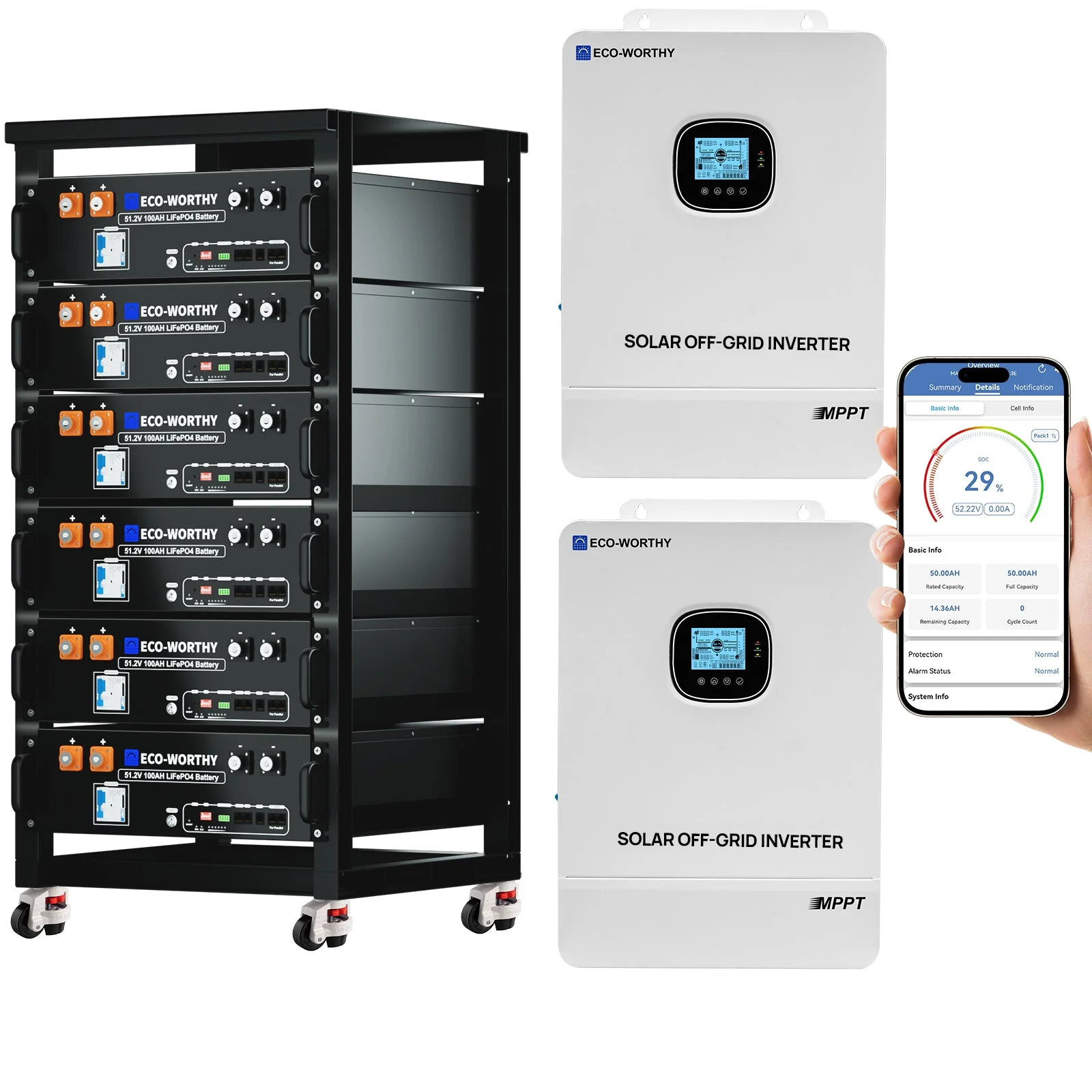

20KW AIO Inverter | 30.72kWh Lithium Battery

6 x 48v 100ah Serve Rack Lithium Battery
2 x 10000W Off-grid Inverter

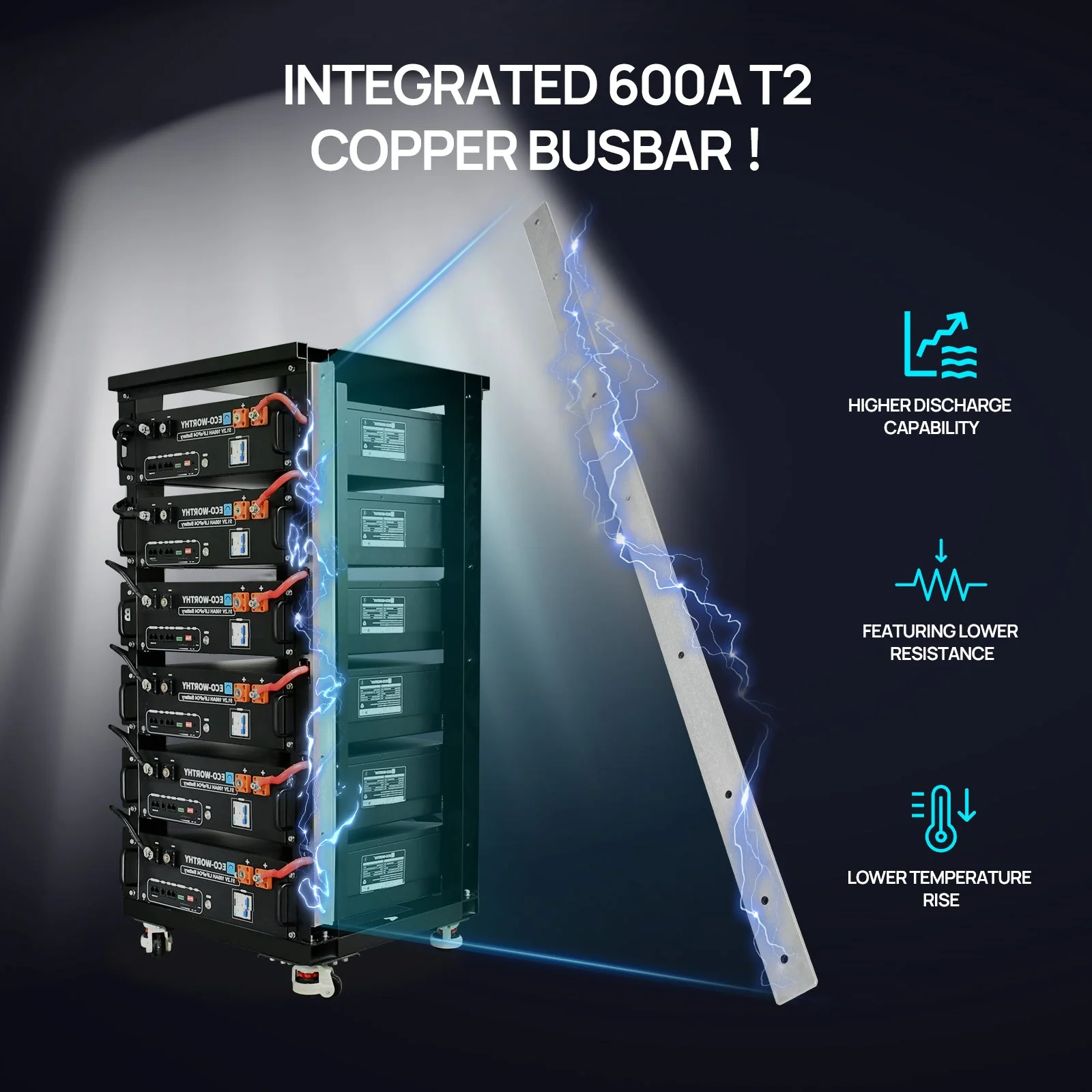

1xECO-WORTHY RACK6 V2 I 6-Layer Rack With 600A Busbar
2 Pairs Battery-to-Inverter Connection Cable
6 Pairs Battery Parallel Cables

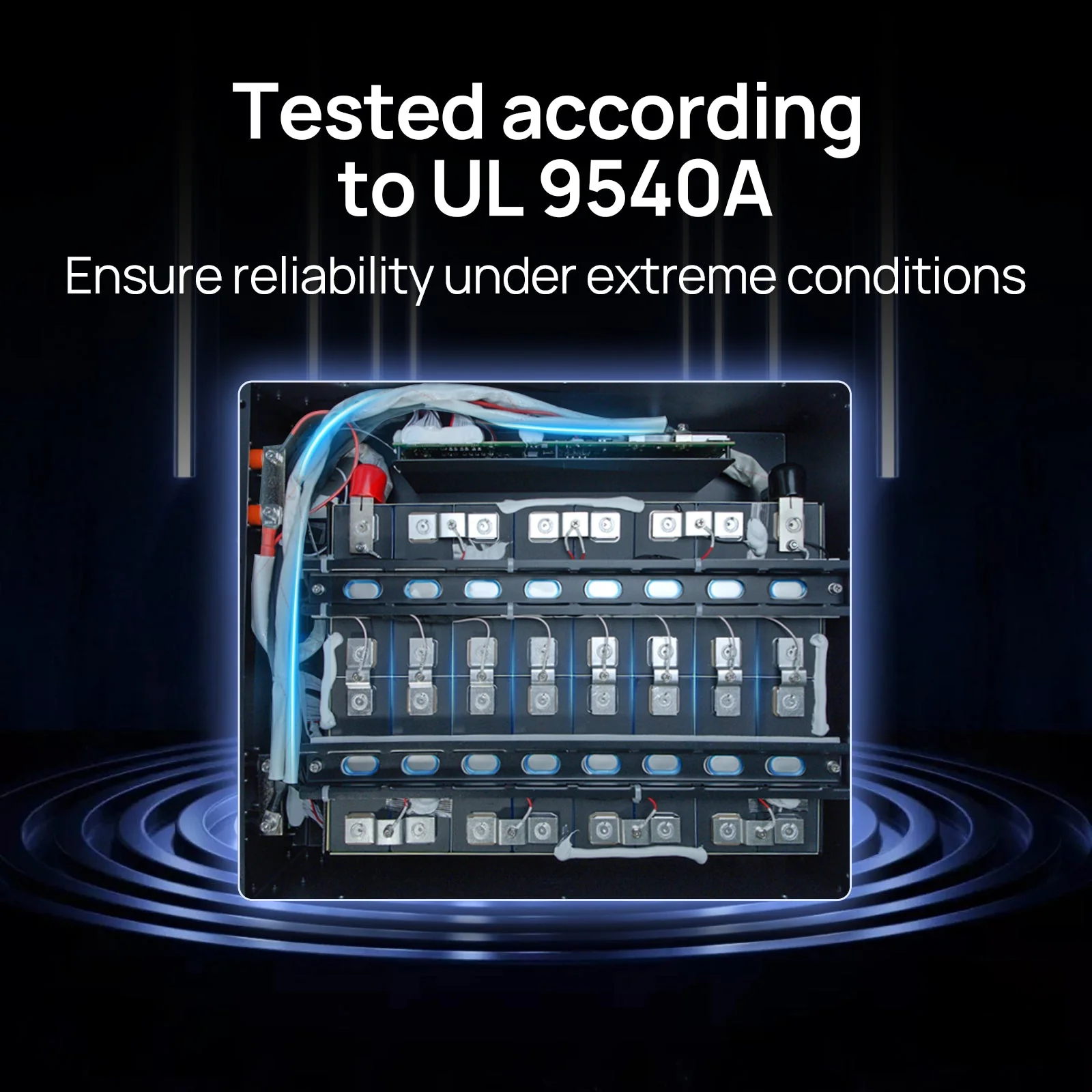

51.2V 100AH SERVE RACK LITHIUM BATTERY

Battery Capacity: 100Ah	Battery Power: 5120Wh
Rated Voltage: 51.2V	Voltage Range: 40~58V
Maximum Charge/ Discharge Current: 100A	Charge Temperature Range: 0-55℃
Disharge Temperature Range:﹣20－55℃	Maximum Charge Voltage: 58.4V
Screw size: M8	Battery Size: 22.55*17.13*5.63inch
Battery Weight: 97 lbs

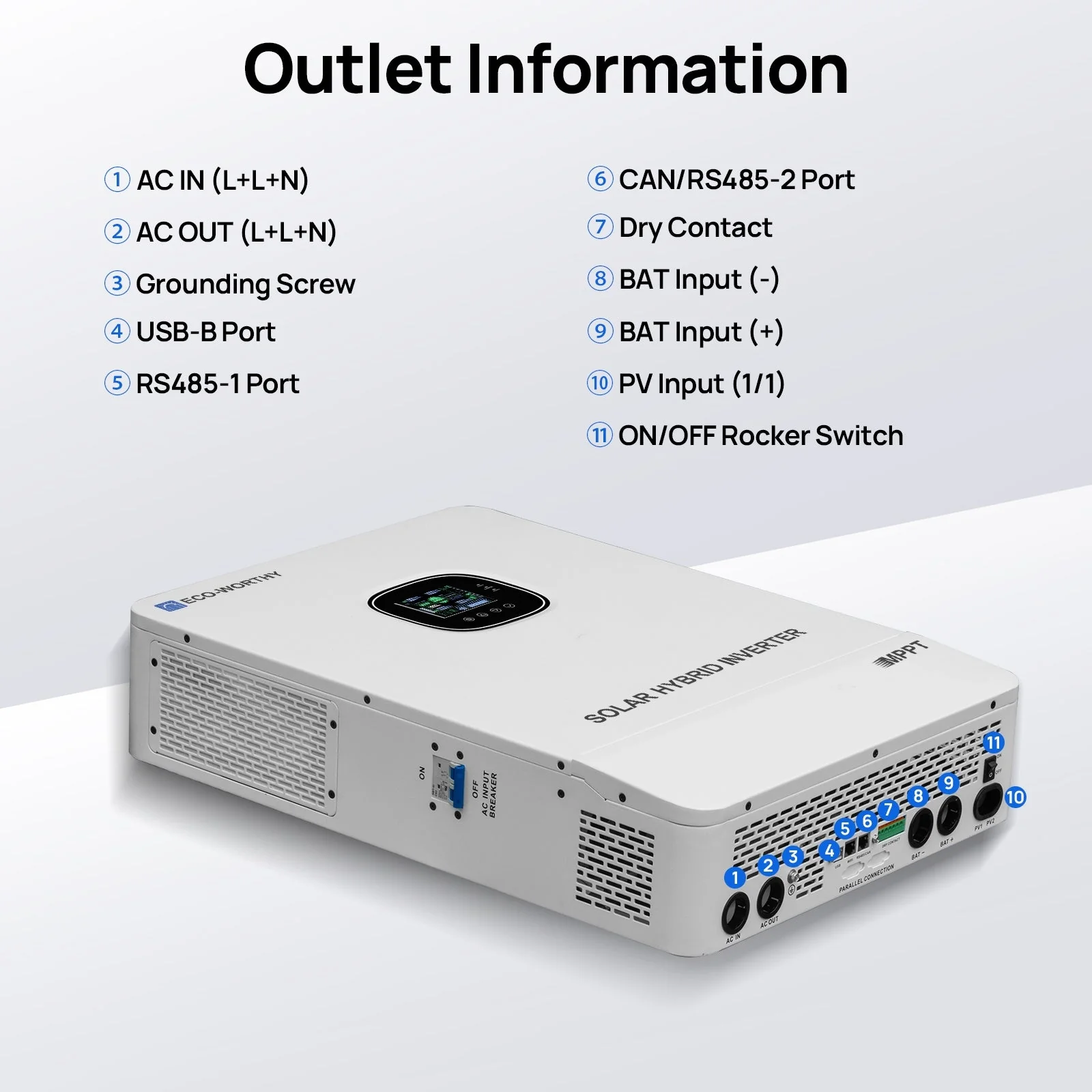

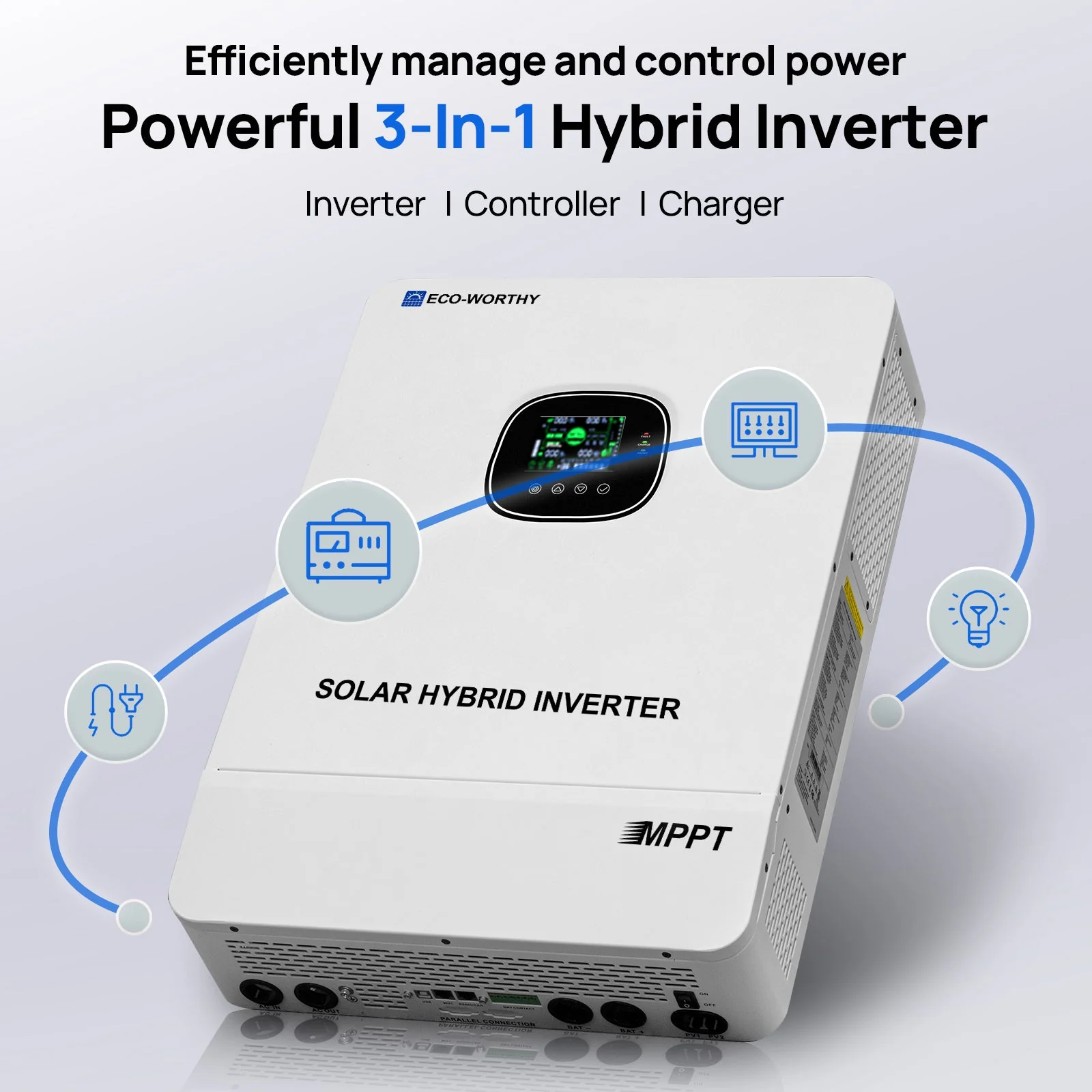

10000W OFF-GRID INVERTER PARAMETER

Split Phase:	L1/L2/N/PE(L1/L2split)	Single Phase:
AC Output Phase	5.000W/5.000W	AC Output Phase	10000W
ACOutputRatedPhasePower	120Vac/120Vac	AC Output Rated Power	120Vac
AC Output RatedPhase woltage	41.7A/41.7A	AC Output Rated Voltage	83.3A
AC Output RatedPhaseCurrent	50Hz/60Hz	AC Output Rated Current A	50Hz/60Hz
AC OutputFrequency	L1/L2/N/PE(L1/L2 split)	AC Input Phase	L/N/PE(L1/L2parallel)
ACInput Phase	5.000W/5.000W	ACInputRatedPower	10000W
ACInputRatedPhasePower	120Vac/120Vac	ACInput RatedVoltage	120Vac
AC InputRatedPhaseVoltage	63A63A	AC Input Voltage Range	90-140Vac
ACInput MaxPhase Current	50Hzor60Hz	ACInput Max Current	126A
ACInputFrequency	90-140Vac/90-140Vac	AC Input Frequency	50Hz/60Hz
AC Input PhaseVoltage Range	120A	AC Input Voltage Range	90-140Vac
AC Charge To Battery Current	L/N/PE(L1/L2parallel)	AC Charge ToBatteryCurrent	120A
		Battery Input:BatteryVoltage	48Vdc(40V-60V)
		Max Battery discharge Current	220A
		Max Battery charge Current	200A
		PV Input
		Number Of PV Circuits	2
		PVinput Voltage Range	100Vdc-500Vdc
		MPPTinput Range	125Vdc-425Vdc
		MaxPVinput Current	22A+22A
		MaxPVinput Power	5500W+5500W
		MaxPV Charge ToBattery Current	200A
		IP Grade	IP20

Package Includes:

Each battery comes with 1 pair of parallel cables/1 x Screws Bag & Terminal Cover/1 x Grounding wire/1 x Battery-Battery communication Cable;The other package contains 1/2 10kW inverter, which also comes with its own wiring.Generally, there is no need to purchase additional cables.

Buy 4 Packs get ESM100 Battery Monitor, Buy 6-pack get 6-layer battery rack.
