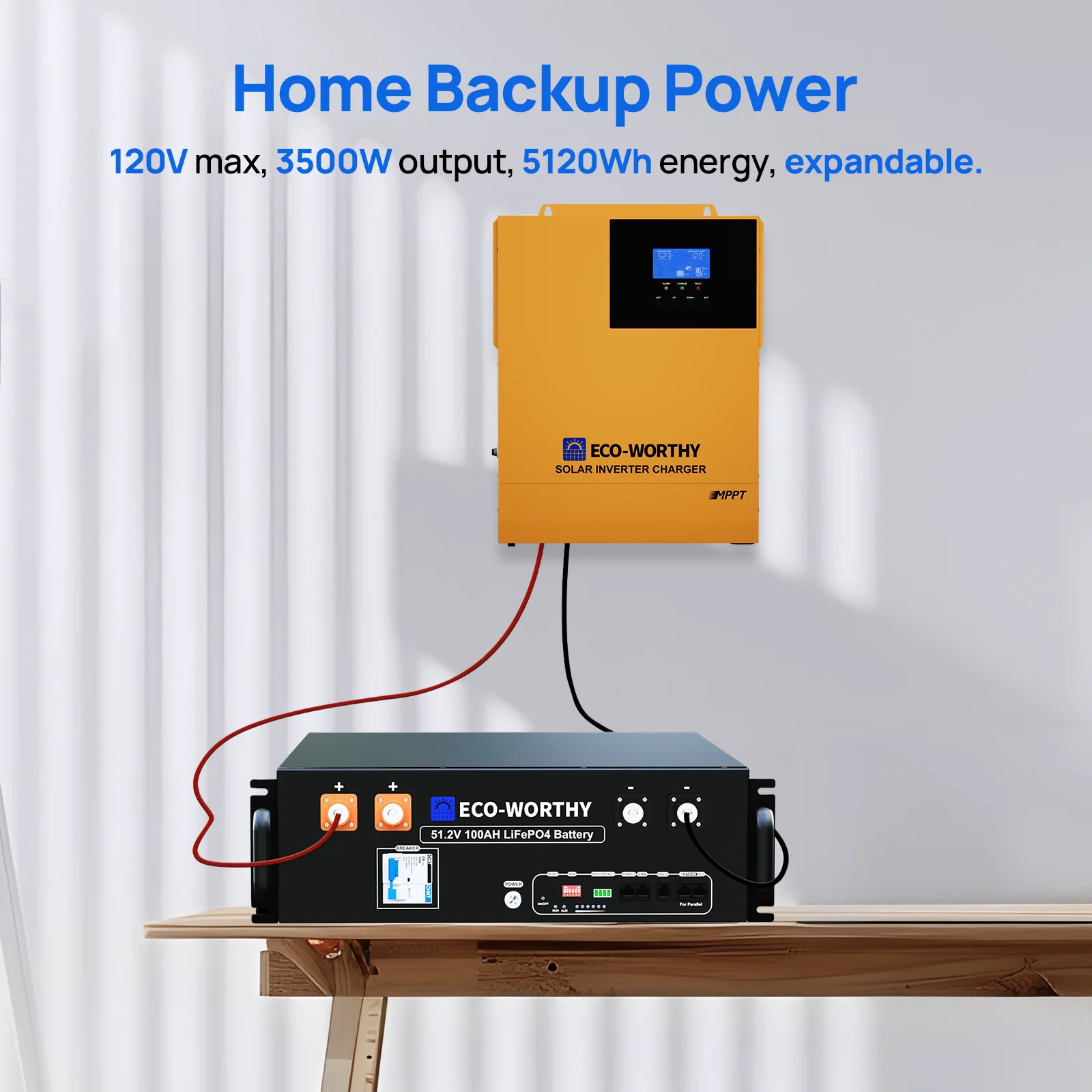

ECO-WORTHY 5.12KWh Home Backup Power With 48V 100Ah LiFePO4 And 3500W 48V Off-Grid Inverter

ECO-WORTHY 5.12kWh Home Backup Power System

48V 100Ah Server Rack Battery

Battery Capacity: 100Ah	Battery Power: 5120Wh
Rated Voltage: 51.2V	Voltage Range: 40~58V
Maximum Charge/ Discharge Current: 100A	Charge Temperature Range: 0-55℃
Disharge Temperature Range:﹣20－55℃	Maximum Charge Voltage: 58.4V

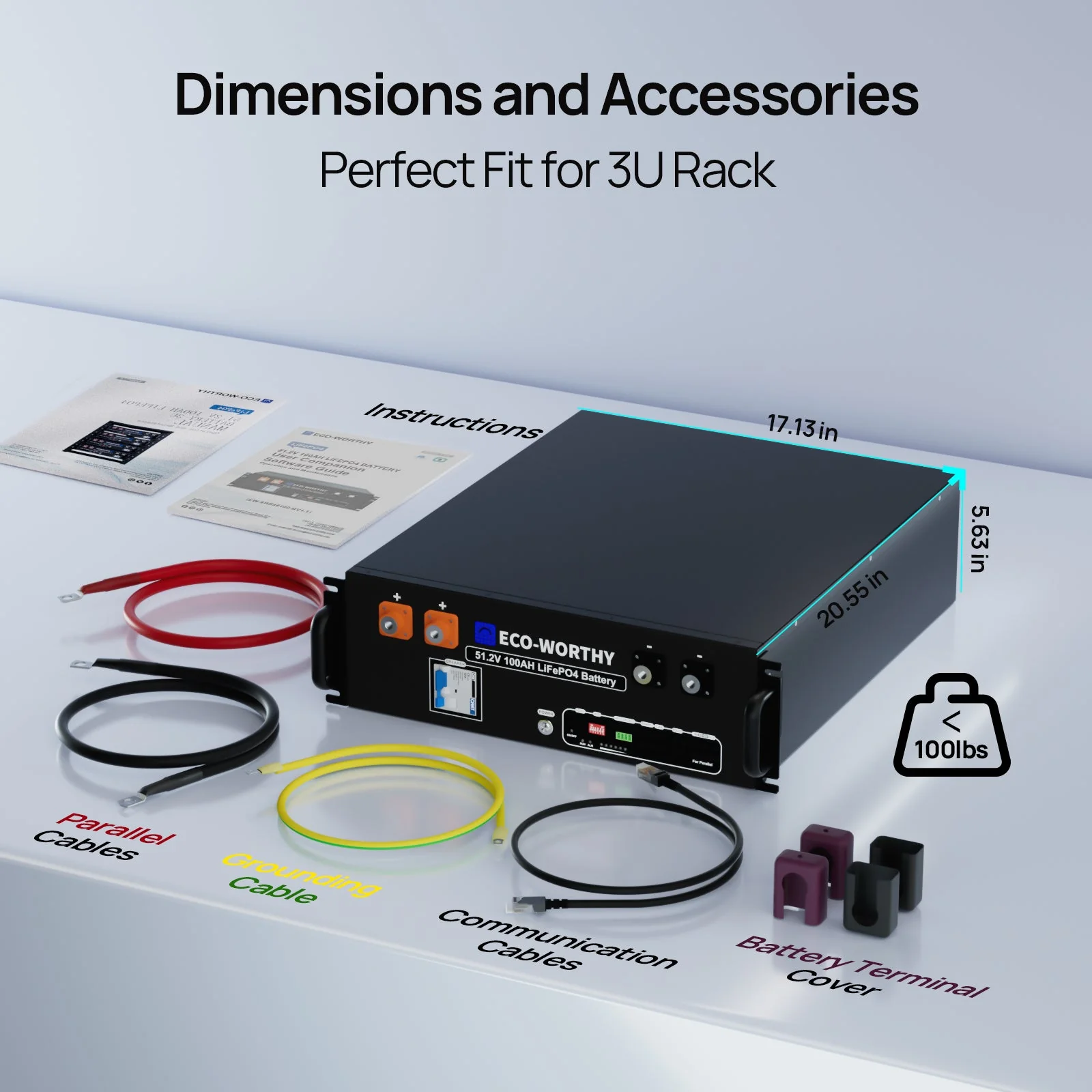

Screw size: M8	Battery Size: 22.55*17.13*5.63inch
Battery Weight: 95 lbs	Each battery comes with a pair of battery parallel cables
Certification：UL1973 | UL9540A

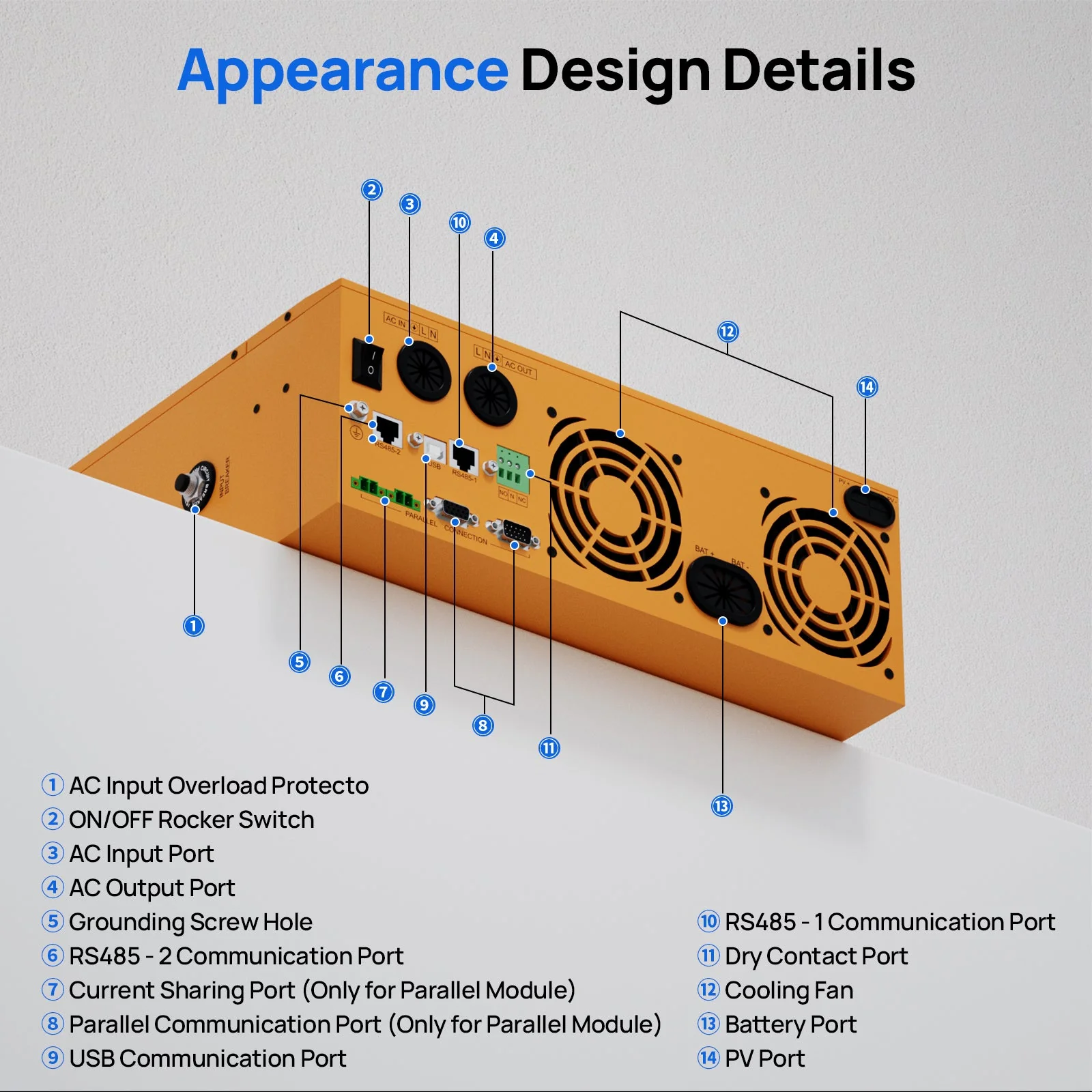

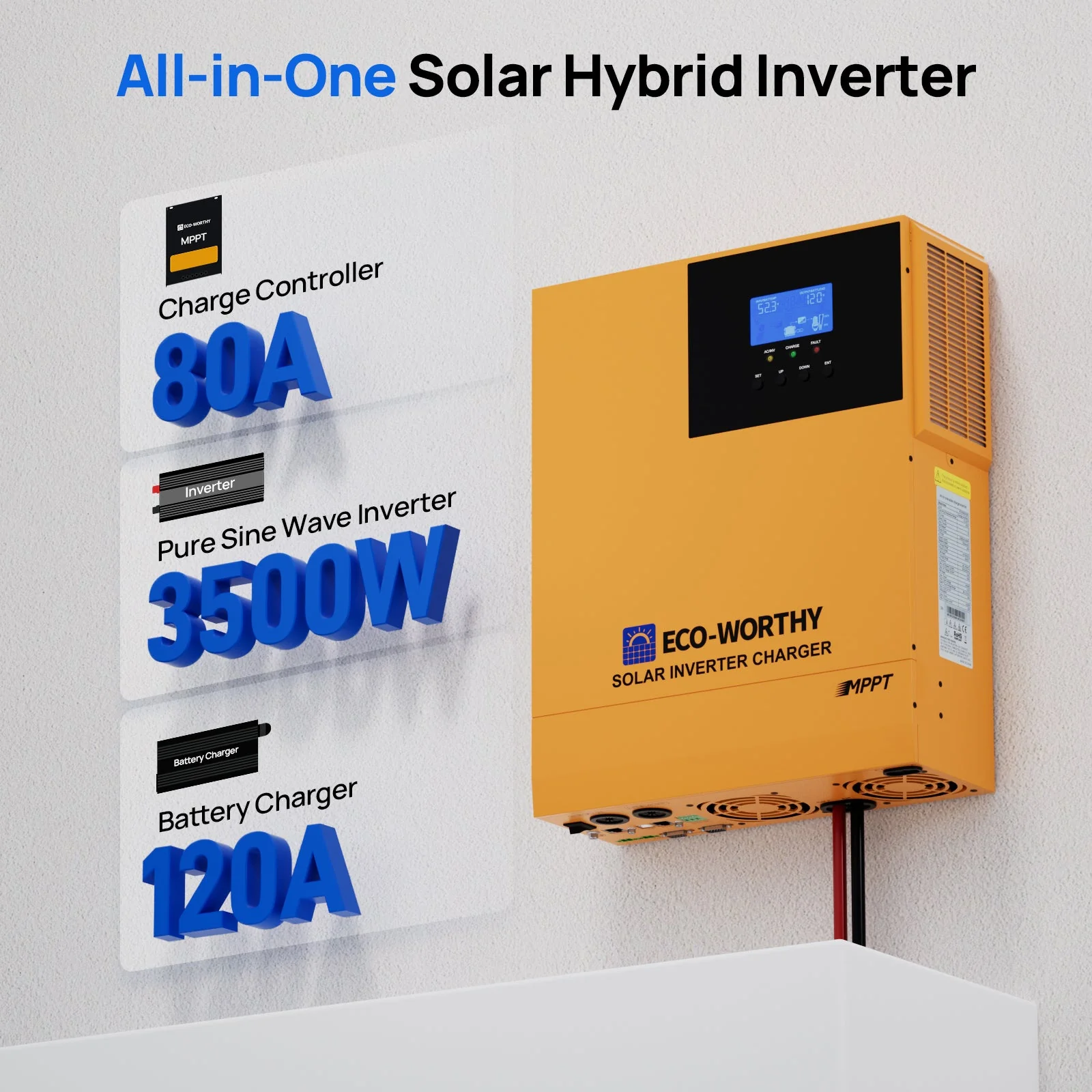

3500W 48V Off-Grid Inverter

AC Input Mode
Rated Input Voltage: 110/120VAC	Input Voltage Range: 90V-140VAC
Frequency: 50Hz/60Hz(auto detect)	Overload/Short Circuit Protection: Circuit breaker
Efficiency: 92%	AC Reverse Protection: Available
Max Bypass Overload Current: 40A
Invert Mode
Output Voltage Waveform: Pure Sine Wave	Rated Output Power: 3500W
Rated Output Voltage: 120VAC	Peak Power: 6000W
Bypass Breaker: 40A	Rated Battery Input Voltage: 48V
Min Starting Voltage: 44V	Power Saving Mode: Load ≤50W
AC Charging Mode
Battery Type: Lead acid or lithium battery	Max Charge Current: 40A
Charge Voltage Range: 40-60VDC	Overcharge Protection: Alarm and turn off charging after 1 minute
PV Charging Mode
Max Input Power: 4400W	PV Charging Current Range：0-80A
Max PV Open Circuit Voltage: 145VDC	PV Operating Voltage Range: 60-145VDC
MPPT Voltage Range: 60-115VDC	Battery Voltage Range: 40-60VDC
Max Output Power: 4200W	Charging Short Circuit Protection: Blown fuse
