ECO-WORTHY 3500W 48V All-in-One Off-Grid Inverter Charger

AC Input Mode
Rated Input Voltage: 110/120VAC	Input Voltage Range: 90V-140VAC
Frequency: 50Hz/60Hz(auto detect)	Overload/Short Circuit Protection: Circuit breaker
Efficiency: 92%	AC Reverse Protection: Available
Max Bypass Overload Current: 40A
Invert Mode
Output Voltage Waveform: Pure Sine Wave	Rated Output Power: 3500W
Rated Output Voltage: 120VAC	Peak Power: 6000W
Bypass Breaker: 40A	Rated Battery Input Voltage: 48V
Min Starting Voltage: 44V	Power Saving Mode: Load ≤50W
AC Charging Mode

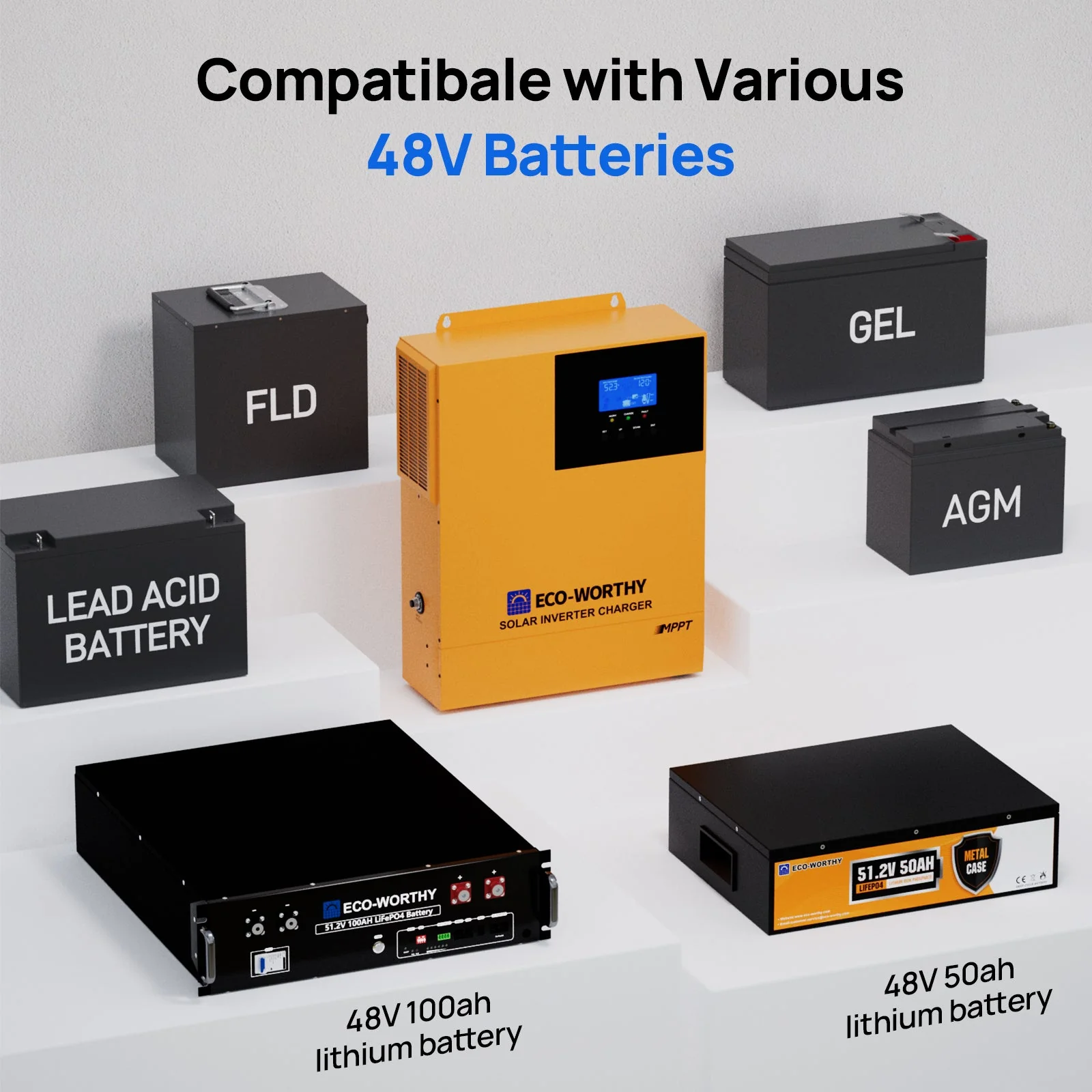

Battery Type: Lead acid or lithium battery	Max Charge Current: 40A
Charge Voltage Range: 40-60VDC	Overcharge Protection: Alarm and turn off charging after 1 minute
PV Charging Mode
Max Input Power: 4400W	PV Charging Current Range：0-80A
Max PV Open Circuit Voltage: 145VDC	PV Operating Voltage Range: 60-145VDC
MPPT Voltage Range: 60-115VDC	Battery Voltage Range: 40-60VDC
Max Output Power: 4200W	Charging Short Circuit Protection: Blown fuse

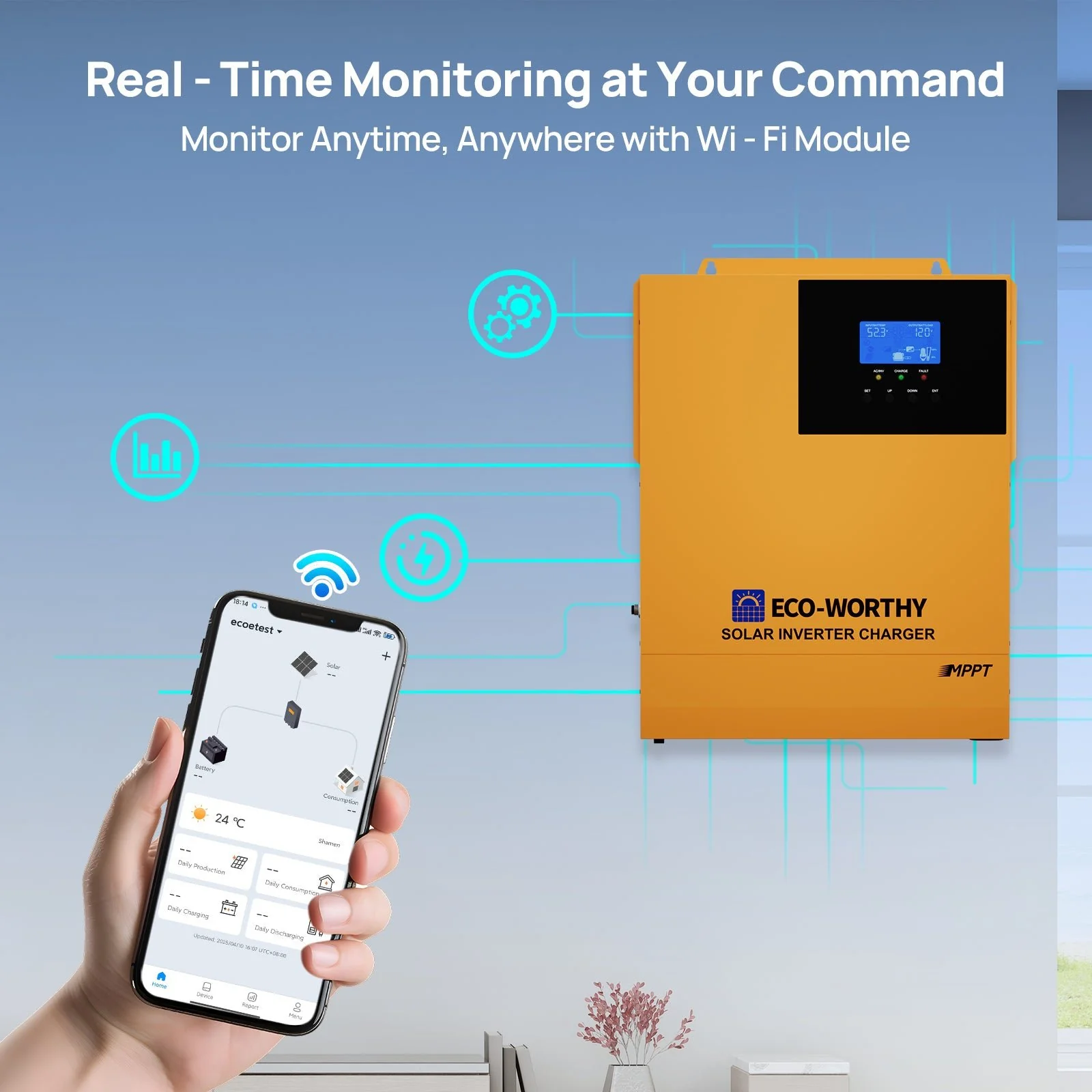

ECO-WORTHY 3500W 48V All-in-One Off-Grid Inverter Charger integrates power inversion, battery charging, and system control into a single unit. Designed for off-grid solar applications, it converts 48V DC battery power into stable 120V AC output. Remote monitoring allows real-time system tracking, while parallel capability supports future expansion.

This inverter charger is ideal for cabins, off-grid homes, and backup power systems requiring reliable and scalable solar energy conversion.
