6KW Solar Off-grid Split-phase AIO Inverter, 48Vdc to 120Vac/240Vac, 9kW@500V PV Input

6KW Solar Off-grid Split-phase AIO Inverter

6kW Off-Grid Split-Phase AIO Inverter is an all-in-one power solution designed to deliver reliable, high-output energy for residential and off-grid solar systems. It converts 48V DC to 120V/240V AC, supports split-phase operation, and handles demanding loads with stable performance.

With up to 9kW PV input capacity, this inverter integrates charging, inversion, and power management into a single unit, simplifying system design and installation. Ideal for home backup, cabins, and off-grid setups, it provides efficient power conversion, strong load handling, and dependable operation for long-term solar energy use.

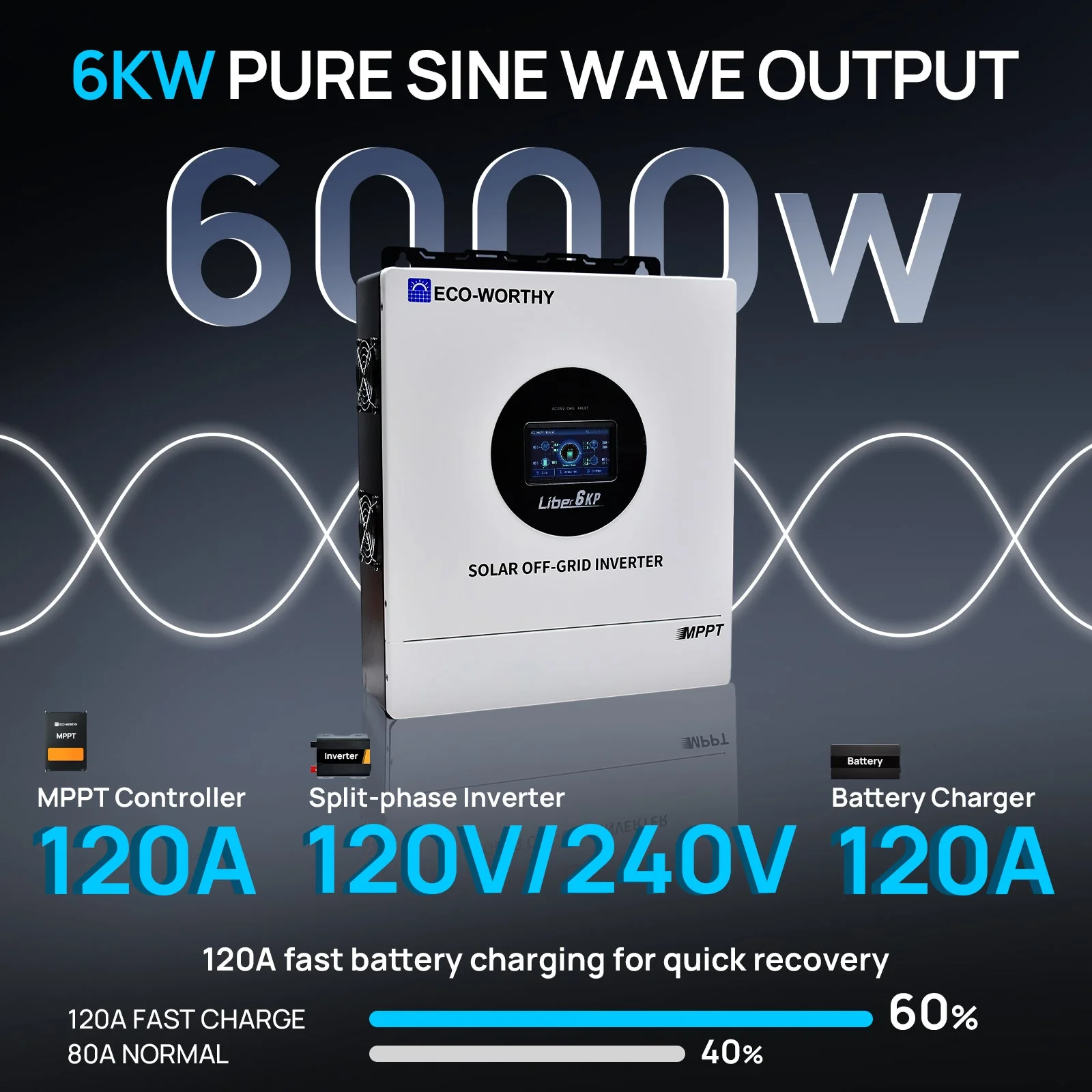

Inverter

Rated Output Power:6000W

Max. Peak Power:12,000w

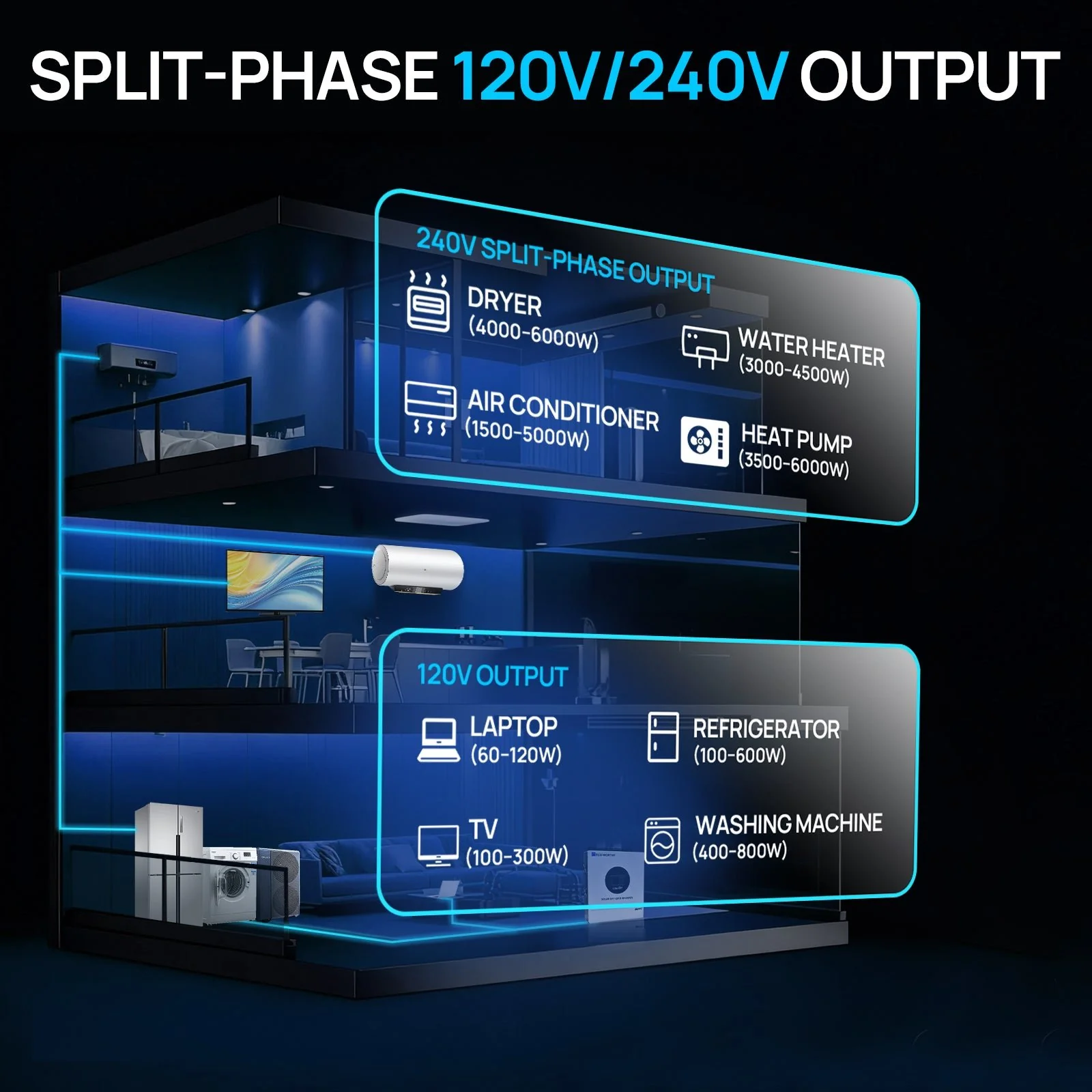

Rated Output Voltage:120/240V(Single-phase/Split-phase)

Motor Loading Capacity:4.8HP

Rated Frequency:60Hz

Output Waveform:Pure Sine Wave

Switching Time:10ms(typicalvalue)

Mains/Generator Input

AC Input Voltage Range: 180VAC-280VAC

AC Input Frequency:60Hz

Bypass Overload Current:45A

Battery

Battery Type:Lithium battery/Lead-acidbattery/User-defined

Rated Battery Voltage:48V

Voltage Range:40~60V

Maximum PhotovoltaicCharging Current:120A

Maximum Mains/Generator Charging Current:100A

Maximum Hybrid Charging Current:120A

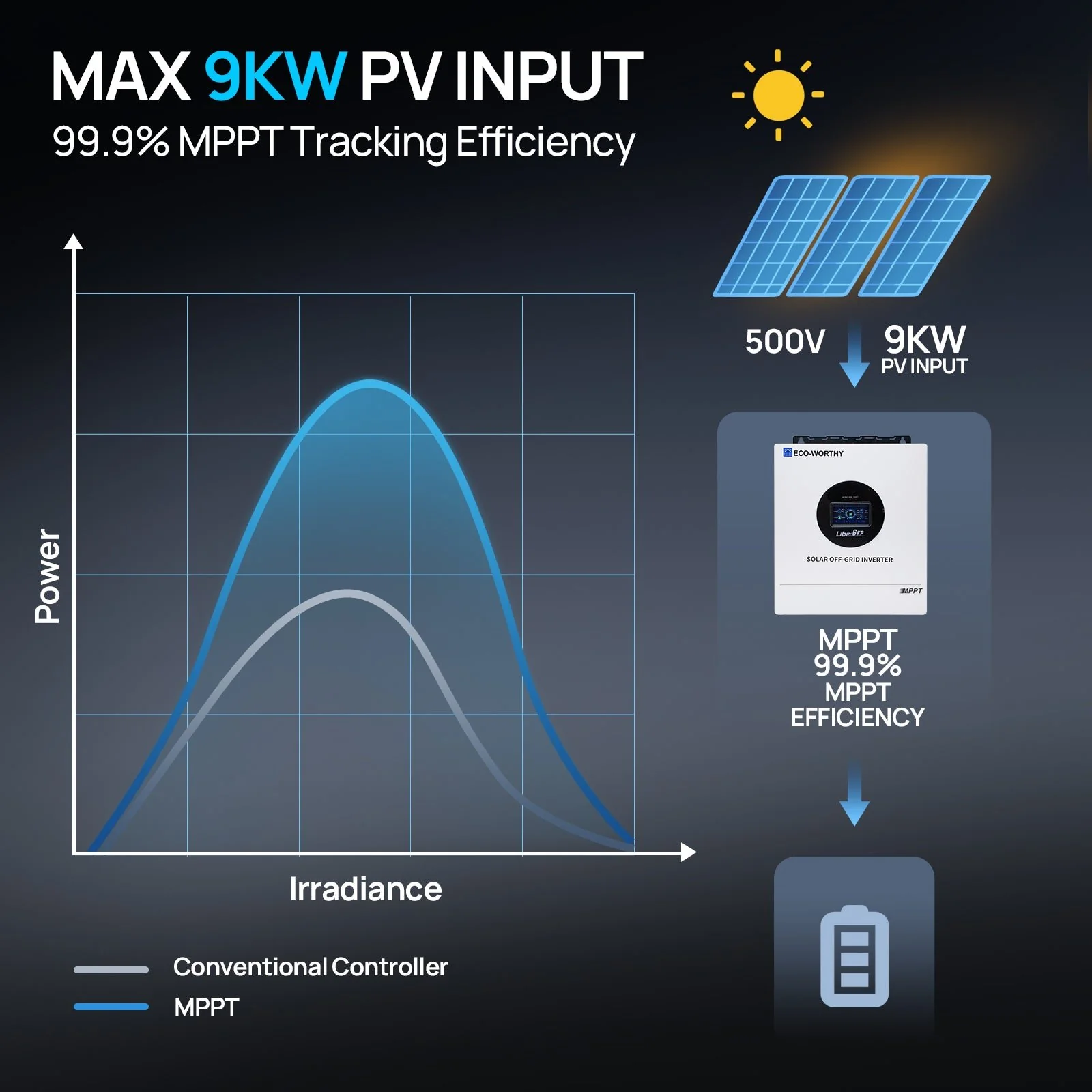

Solar Input

Numberof MPPT Routes:1

Maximum Input Power:9000w

Maximum Input Current:27A

Maximum Open-circuit Voltage:500V

MPPT Operating Voltage Range:125-425V
