60A 12/24/36/48V MPPT OLED Display Solar Charge Controller Regulator
60A MPPT Solar Charge Controller with OLED Display
| Battery voltage：12V/24V/36V/48V | Max Solar Input Power：780W(12V)/1560W(24V)/2340W(36V)/3120W(48V) |
| Charging mode：MPPT | Rated Load Current：30A |
| Charge Efficiency (Peak)：97% | Max Charge current：60A |
| Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded | No-load static loss: 0.5W-1.2W |

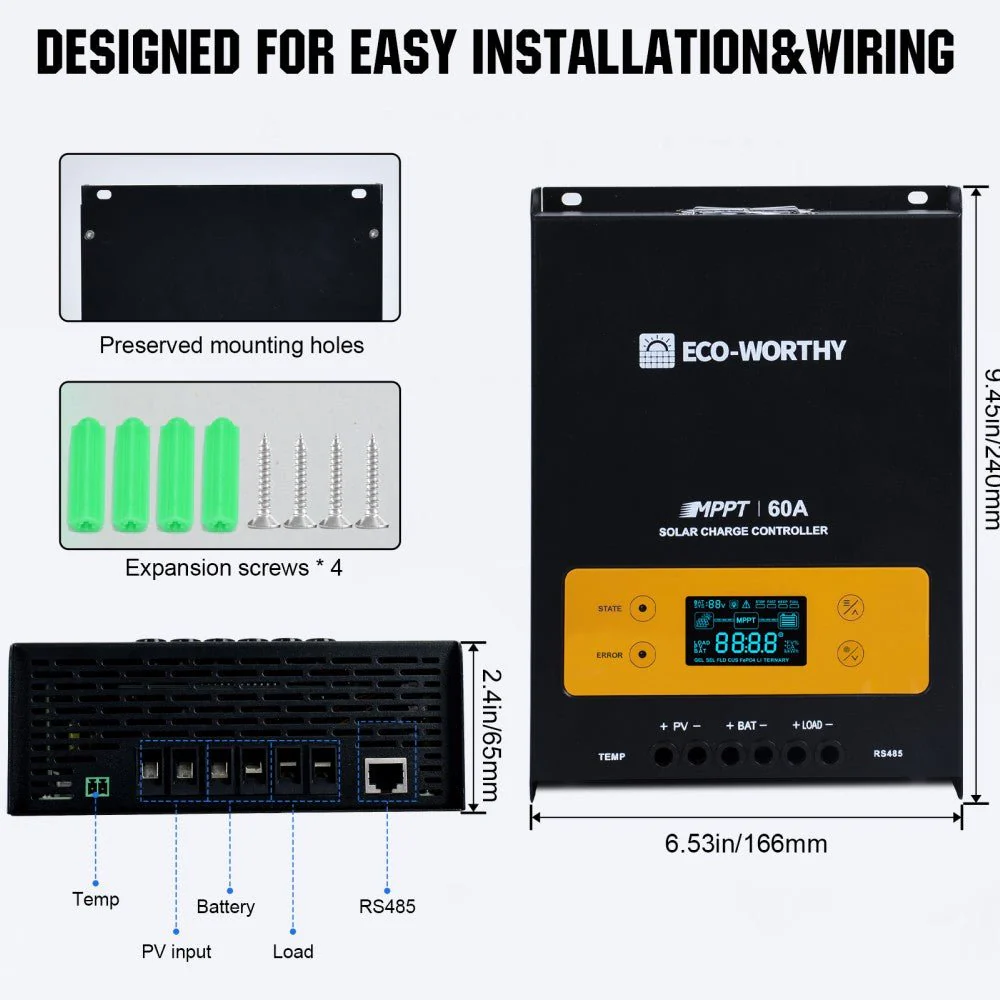

| Size：240*166*65mm | Weight：1.96KG |
| Maximum wire size: 20mm2 |

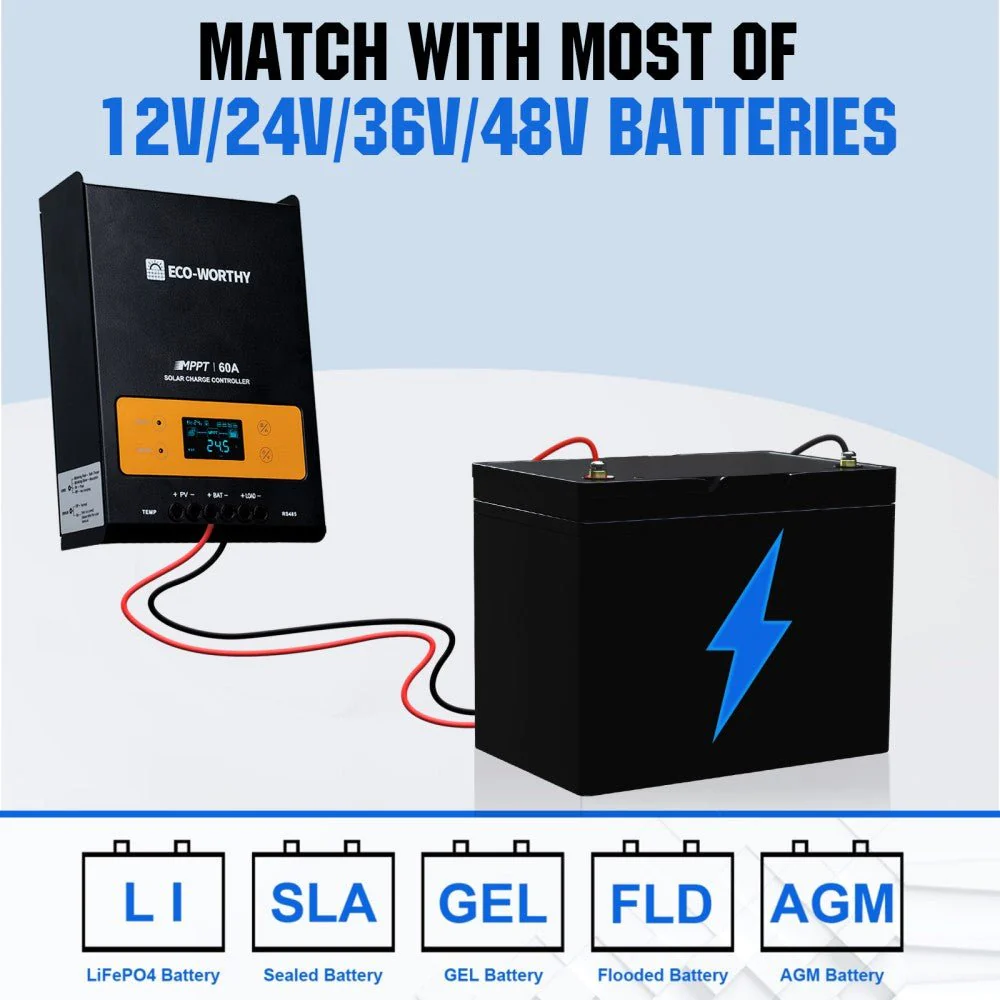

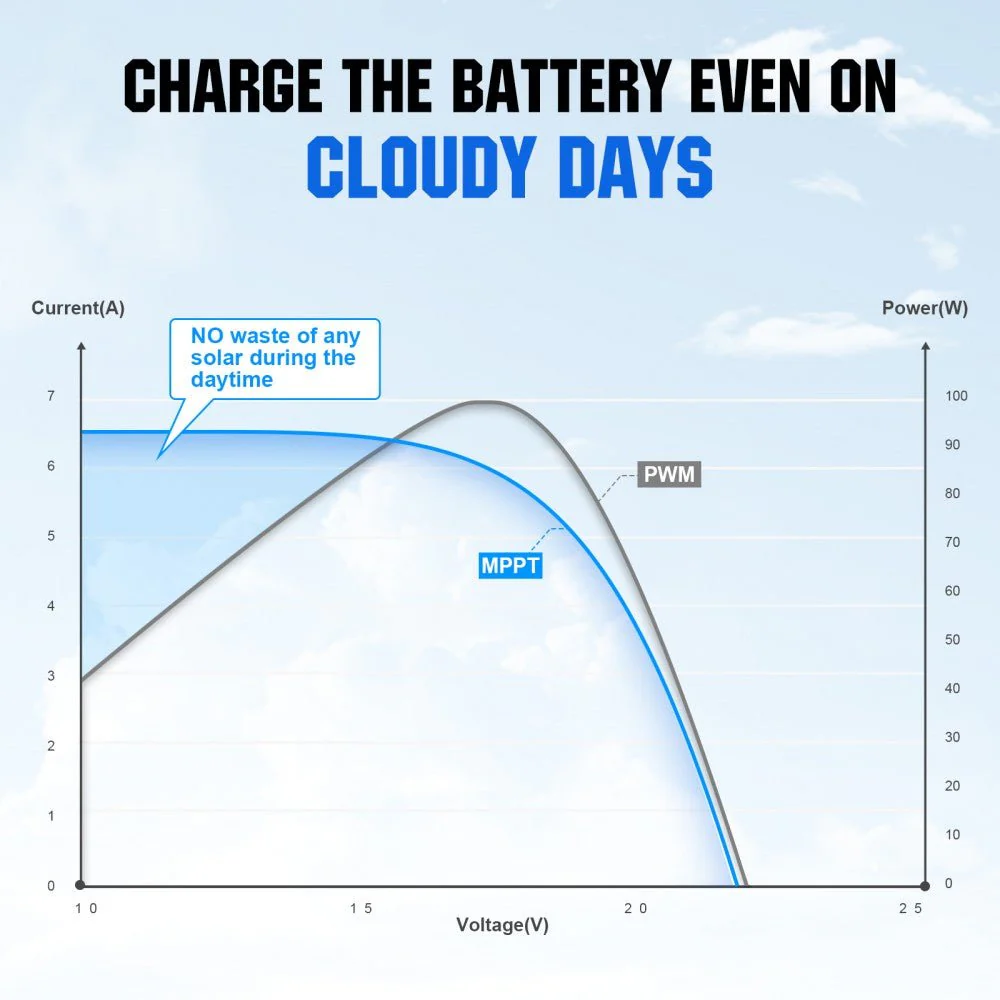

60A MPPT Solar Charge Controller is designed to optimize solar energy harvesting for 12V, 24V, 36V, and 48V battery systems. MPPT technology maximizes charging efficiency by continuously adjusting voltage and current based on solar input conditions.
The integrated OLED display provides real-time system data, including charging status and battery information. This controller is suitable for off-grid solar systems, RVs, and energy storage setups where efficient charging and system visibility are essential. It supports stable performance and long-term reliability in demanding solar applications.
More Images
60A 12/24/36/48V MPPT OLED Display Solar Charge Controller Regulator
60A MPPT Solar Charge Controller with OLED Display
| Battery voltage：12V/24V/36V/48V | Max Solar Input Power：780W(12V)/1560W(24V)/2340W(36V)/3120W(48V) |
| Charging mode：MPPT | Rated Load Current：30A |
| Charge Efficiency (Peak)：97% | Max Charge current：60A |
| Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded | No-load static loss: 0.5W-1.2W |
| Size：240*166*65mm | Weight：1.96KG |
| Maximum wire size: 20mm2 |
60A MPPT Solar Charge Controller is designed to optimize solar energy harvesting for 12V, 24V, 36V, and 48V battery systems. MPPT technology maximizes charging efficiency by continuously adjusting voltage and current based on solar input conditions.
The integrated OLED display provides real-time system data, including charging status and battery information. This controller is suitable for off-grid solar systems, RVs, and energy storage setups where efficient charging and system visibility are essential. It supports stable performance and long-term reliability in demanding solar applications.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
60A MPPT Solar Charge Controller with OLED Display
| Battery voltage：12V/24V/36V/48V | Max Solar Input Power：780W(12V)/1560W(24V)/2340W(36V)/3120W(48V) |
| Charging mode：MPPT | Rated Load Current：30A |
| Charge Efficiency (Peak)：97% | Max Charge current：60A |
| Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded | No-load static loss: 0.5W-1.2W |
| Size：240*166*65mm | Weight：1.96KG |
| Maximum wire size: 20mm2 |
60A MPPT Solar Charge Controller is designed to optimize solar energy harvesting for 12V, 24V, 36V, and 48V battery systems. MPPT technology maximizes charging efficiency by continuously adjusting voltage and current based on solar input conditions.
The integrated OLED display provides real-time system data, including charging status and battery information. This controller is suitable for off-grid solar systems, RVs, and energy storage setups where efficient charging and system visibility are essential. It supports stable performance and long-term reliability in demanding solar applications.
